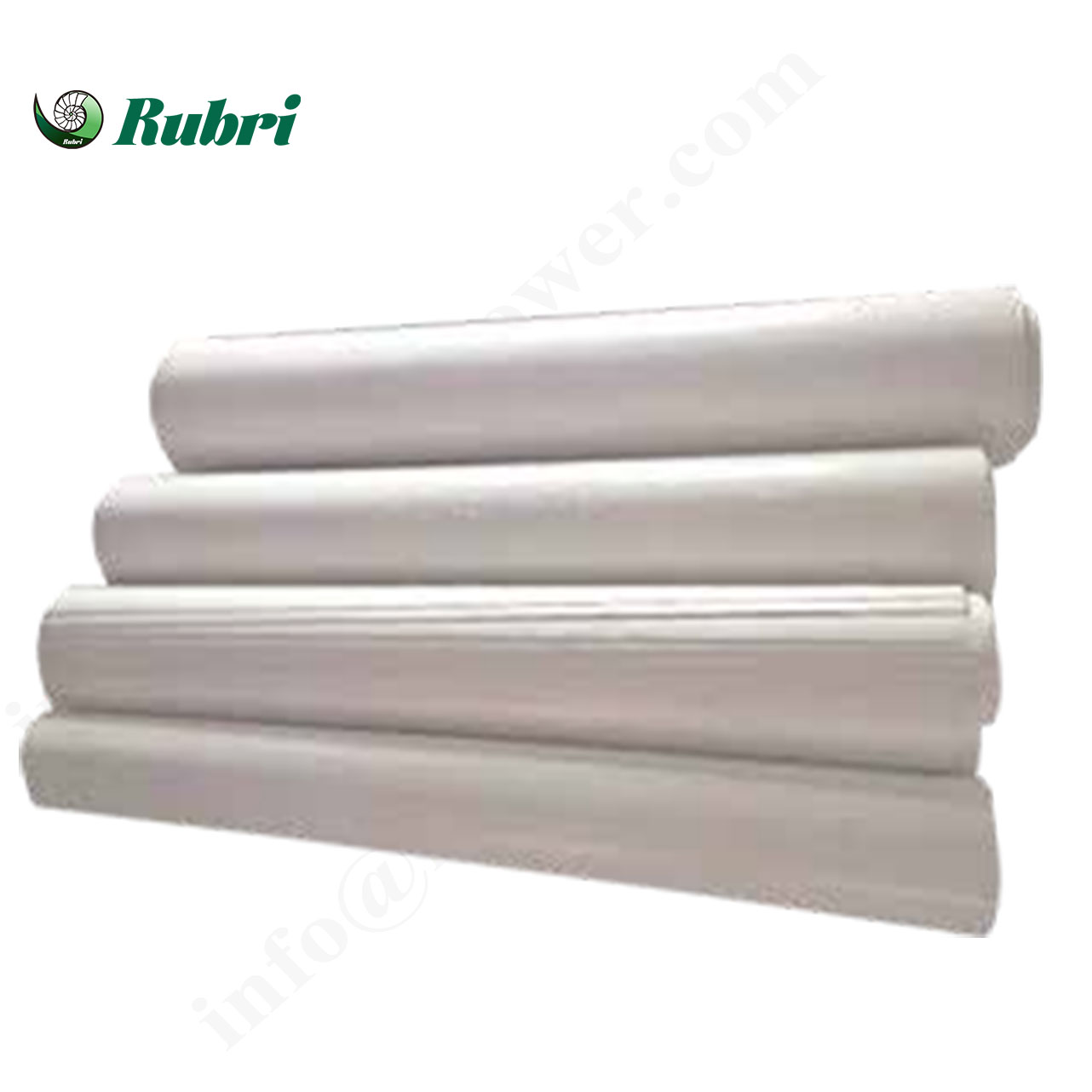

This Alkaline Electrolysis Composite Membrane is a proprietary innovation crafted from organic polymers, ceramic powder, and a reinforcing liner. It is widely applied in water electrolysis systems to effectively separate hydrogen and oxygen without blocking the electrolyte. As a technologically advanced product, it serves as a critical component for high-efficiency green hydrogen generation.
Brand :
Rubri
ALKAINE ELECTROLYZED WATER COMPOSITE MEMBRANE
The key material for green hydrogen production

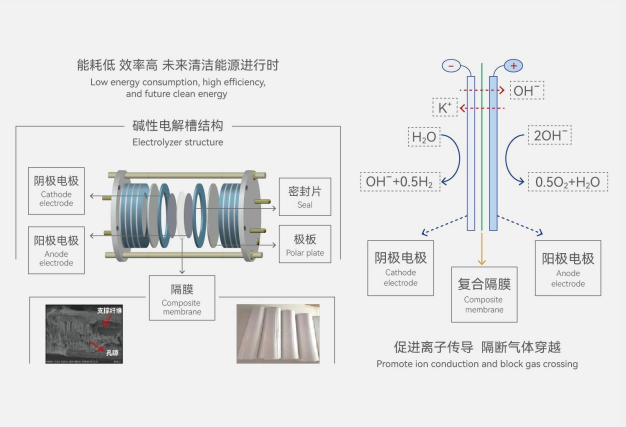

The new composite membrane independently developed by CE is composed of organic polymer, ceramic powder and lining support. Widely used in alkaline electrolysis of water, it can efficiently separate hydrogen and oxygen, and pass the electrolyte. It is a breakthrough and innovative product for the key technology in this field.

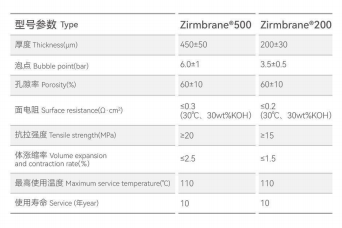

Product Specification
Features and advantages
Safe and stable
High purity
Long life
Customizable
The cross-section of composite membrane
The surface of composite membrane
Low ionic resistance, surface resistance ≤0.3 Ω·cm² (30℃, 30mV%KOH)
Long width range up to 2.5 meters, and the size can be customized according to customer needs
Chemically and mechanically stable, and life is more than 7 years
Permanent hydrophilic, strong electrolyte infiltration
Nanoporous structure, porosity ≥60±10%
High bubble point pressure, high operating safety
The purity of hydrogen is greater than 99.7%
In order to better adapt to the development of electrolyzer,who has developed a three - dimensional composite membrane based on the first nature principle, which is more suitable for the pressurized tank structure.
Read More
This Alkaline Electrolysis Composite Membrane is a proprietary innovation crafted from organic polymers, ceramic powder, and a reinforcing liner. It is widely applied in water electrolysis systems to effectively separate hydrogen and oxygen without blocking the electrolyte. As a technologically advanced product, it serves as a critical component for high-efficiency green hydrogen generation.
Read More
Gas Diffusion Layer Titanium Felt is a core spare component for AWE electrolyzer stack, manufactured from high-purity titanium raw material. It features 3D interconnected porous structure with porosity ranging from 60%~75%, available in customizable overall dimensions and multiple thickness options of 0.25mm/0.4mm/0.8mm/1mm.
Read More
Production Description Pure Nickel Wire Mesh is an indispensable electrode raw component for AWE alkaline electrolyzer stacks, produced from high-grade nickel grades including Ni200, Ni205, Ni270, N2, N4, N6 and N8.
Read More
Raney Nickel Electrode serves as the core functional component of electrolyzers. Featuring superior catalytic activity, outstanding electrical conductivity and robust structural stability, it is widely deployed in alkaline water electrolysis for hydrogen production, organic electrochemical synthesis and industrial wastewater electrolysis, improving overall electrolyzer efficiency and long-term operational reliability.
Read More
Alkaline electrolysis water hydrogen production technology dominates the field of water electrolysis hydrogen production due to its advantages such as low cost, long lifespan, and abundant material sources. The PPS membrane, made from high-performance specialty engineering plastic polyphenylene sulfide (PPS), maintains stable performance in high-temperature and alkaline environments, making it suitable for alkaline hydrogen production.
Read More
