Raney Nickel Electrode serves as the core functional component of electrolyzers
Raney Nickel Electrode
Raney Nickel Electrode is the core catalytic cathode component specially designed for AWE alkaline water electrolysis stacks, coated with activated Raney nickel catalyst on pure nickel mesh substrate for high-efficiency hydrogen evolution reaction (HER) under alkaline KOH electrolyte environment.
Product Features
Ultra-high specific surface area brings superior catalytic activity, greatly reducing electrolytic overpotential and lowering overall hydrogen production power consumption.
Outstanding alkali and high-temperature corrosion resistance, perfectly stable in 30% KOH alkaline solution under long-time continuous AWE electrolysis operation.
Slow performance attenuation rate guarantees long service life and reduces regular replacement frequency for electrolyzer stacks.
Cost-effective non-precious-metal catalytic material without platinum group metals, cutting total equipment investment of AWE hydrogen production system.
Customizable size to match various specifications of AWE electrolyzer stack assembly and aftermarket replacement.
| No. | Parameters | Specifications |
| 1 | Overpotential @5000 A/m² | HER (vs. RHE) ~320 mV;OER (vs. 1.23 V RHE) ~350 mV |
| 2 | Decay rate | 0.5 μV/h |
| 3 | Cell voltage | 1.85 V @5000 A/m² |
| 4 | Power consumption | 4.5 kWh/Nm³ @5000 A/m² |
Application
Mainly applied as cathode catalytic electrode inside industrial AWE alkaline electrolyzer stacks for green hydrogen generation, widely used in large-scale on-site hydrogen production, renewable energy coupled water electrolysis projects.
In order to better adapt to the development of electrolyzer,who has developed a three - dimensional composite membrane based on the first nature principle, which is more suitable for the pressurized tank structure.
Read More
This Alkaline Electrolysis Composite Membrane is a proprietary innovation crafted from organic polymers, ceramic powder, and a reinforcing liner. It is widely applied in water electrolysis systems to effectively separate hydrogen and oxygen without blocking the electrolyte. As a technologically advanced product, it serves as a critical component for high-efficiency green hydrogen generation.
Read More

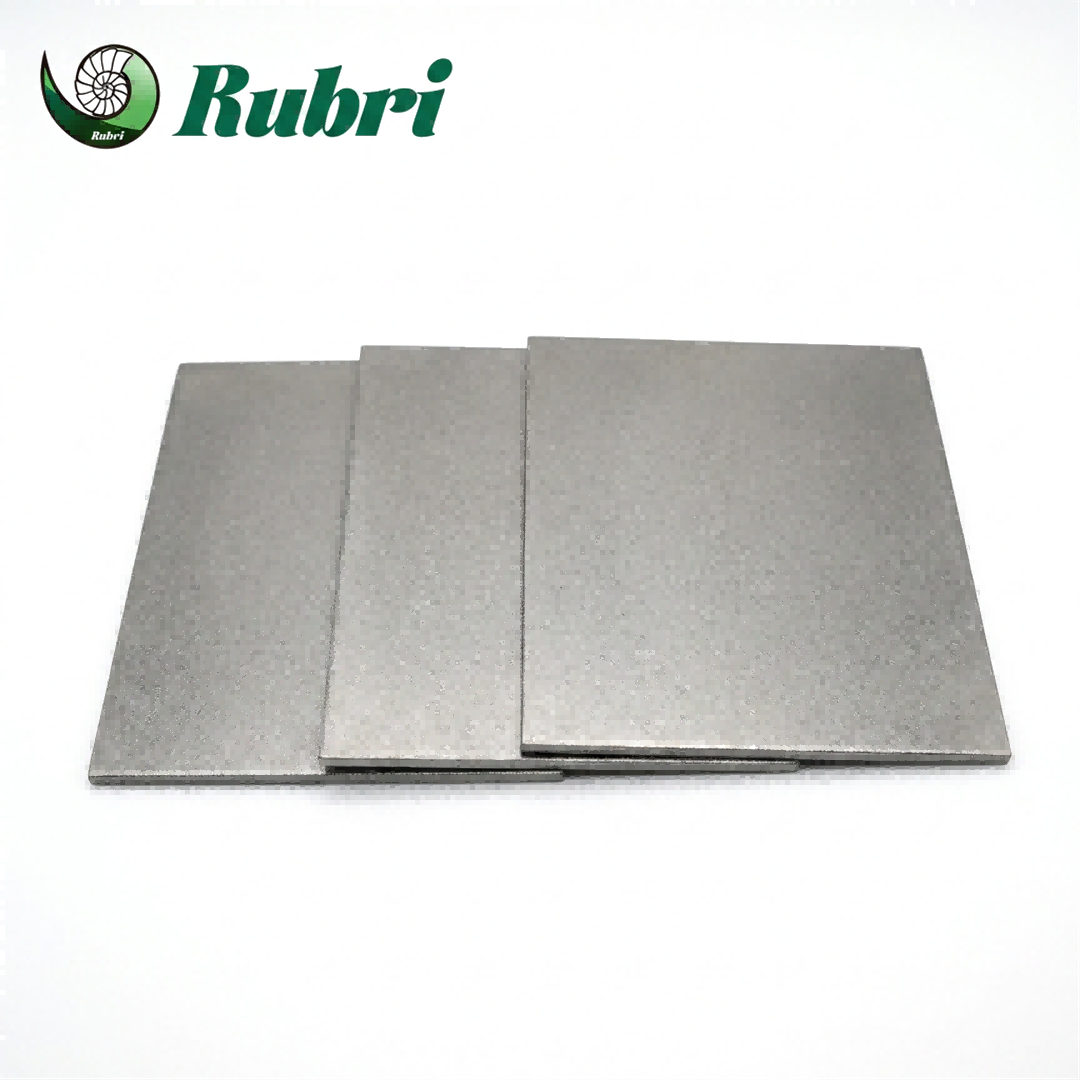

Product Description Gas Diffusion Layer Titanium Felt is a core spare component for AWE & PEM electrolyzer stack, manufactured from high-purity titanium raw material. It features 3D interconnected porous structure with porosity ranging from 60%~75%, available in customizable overall dimensions and multiple thickness options of 0.25mm/0.4mm/0.8mm/1mm.
