In order to better adapt to the development of electrolyzer,who has developed a three - dimensional composite membrane based on the first nature principle, which is more suitable for the pressurized tank structure.
Brand :
RubriFeatures and advantage
Three - dimensional interwoven integrated structure
Interwoven integrated structure similar to a bird's nest, with significant thermal stability and abrasion resistance, and better matching with Raney nickel electrodes.
Excellent resistance to extrusion and fracture
The three - dimensional structure provides excellent resistance to extrusion, fracture and powder bonding strength, which enhances the suitability for assembly with tanks and reliability during operation.
Nanoporous and permanently hydrophilic properties
Continuing the nanoporous and permanently hydrophilic properties of conventional composite membrane.

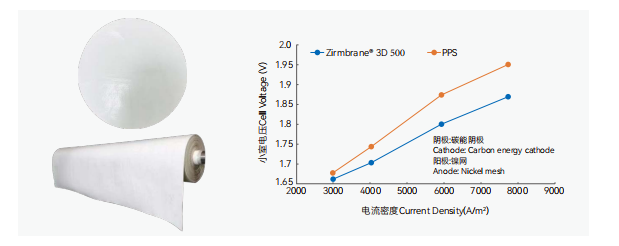

High bubble point pressure and low chamber voltage
High bubble point pressure and low chamber voltage, while ensuring safety, significantly reduce electrolytic energy consumption.
Adaptable to traditional electrolyzer
It is more adaptable to traditional electrolyzers, facilitates the upgrading of existing electrolyzers, significantly reduces the production cost of green hydrogen (LCOH), and has a broad application prospect and important strategic significance in the field of hydrogen production from electrolyzed water.

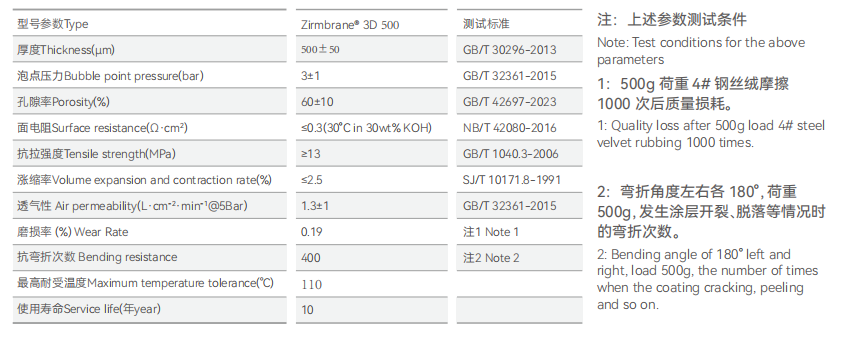

Product Parameters
In order to better adapt to the development of electrolyzer,who has developed a three - dimensional composite membrane based on the first nature principle, which is more suitable for the pressurized tank structure.
Read More
This Alkaline Electrolysis Composite Membrane is a proprietary innovation crafted from organic polymers, ceramic powder, and a reinforcing liner. It is widely applied in water electrolysis systems to effectively separate hydrogen and oxygen without blocking the electrolyte. As a technologically advanced product, it serves as a critical component for high-efficiency green hydrogen generation.
Read More
Product Description Gas Diffusion Layer Titanium Felt is a core spare component for AWE & PEM electrolyzer stack, manufactured from high-purity titanium raw material. It features 3D interconnected porous structure with porosity ranging from 60%~75%, available in customizable overall dimensions and multiple thickness options of 0.25mm/0.4mm/0.8mm/1mm.
Read More
Product Description Bipolar Plate is a critical core component for AWE alkaline electrolyzer stack, produced from high-purity titanium substrate with platinum coating.
Read More
Production Description Pure Nickel Wire Mesh is an indispensable electrode raw component for AWE alkaline electrolyzer stacks, produced from high-grade nickel grades including Ni200, Ni205, Ni270, N2, N4, N6 and N8.
Read More
Product Description Raney Nickel Electrode serves as the core functional component of electrolyzers. Featuring superior catalytic activity, outstanding electrical conductivity and robust structural stability, it is widely deployed in alkaline water electrolysis for hydrogen production, organic electrochemical synthesis and industrial wastewater electrolysis, improving overall electrolyzer efficiency and long-term operational reliability.
Read More
Alkaline electrolysis water hydrogen production technology dominates the field of water electrolysis hydrogen production due to its advantages such as low cost, long lifespan, and abundant material sources. The PPS membrane, made from high-performance specialty engineering plastic polyphenylene sulfide (PPS), maintains stable performance in high-temperature and alkaline environments, making it suitable for alkaline hydrogen production.
Read More
