Alkaline Water Electrolys is a mature and efficient technology for producing high-purity green hydrogen from renewable energy sources. The system consists of several key components working in synergy to ensure safe, stable, and efficient hydrogen generation
Size :
100Nm3/hBrand :
RubriCustomization :
SupportProduct Description

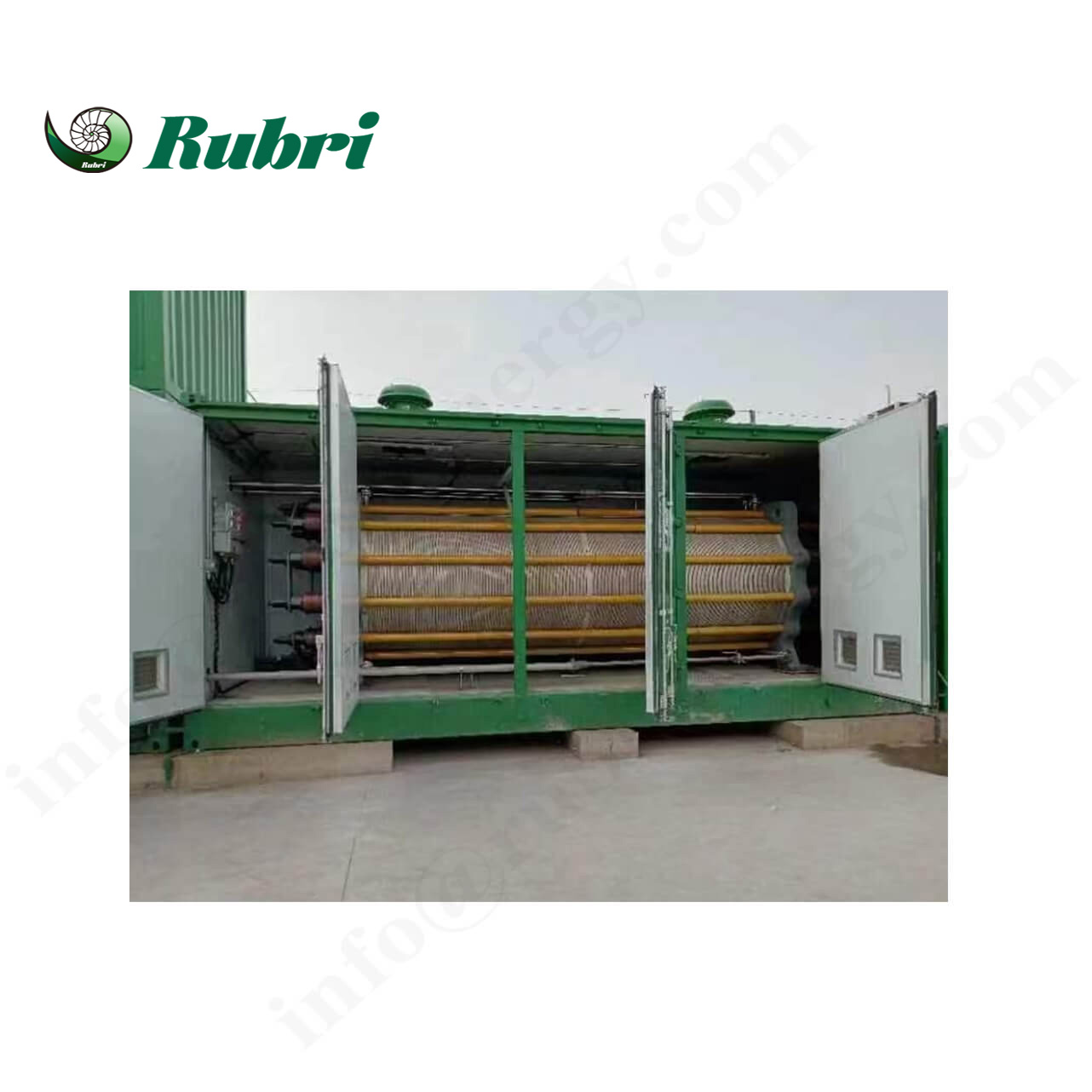

Alkaline Hydrogen Water Electrolysis Equipment
1.Power Supply Unit – Converts and regulates electrical input (AC/DC) to provide optimal voltage and current for electrolysis.
2.PLC Control Unit – An intelligent automation system that monitors and adjusts operational parameters (temperature, pressure, electrolyte concentration) for peak performance and safety.
3.Electrolyzer Stack – The core component where water splitting occurs, featuring durable electrodes and advanced diaphragms for high-efficiency hydrogen production.
4.Alkali Circulating Unit – Maintains optimal electrolyte (KOH/NaOH) flow, ensuring consistent reaction efficiency and heat dissipation.
5.Gas-Liquid Separation Unit – Separates hydrogen and oxygen from the alkaline solution while minimizing crossover contamination.
6.Hydrogen Purification Unit – Removes residual moisture and impurities, delivering 99.99%+ pure hydrogen for industrial, energy, or mobility applications.
Specifications
| Model | H2 capacity （Nm³/h） |
H2 pressure | H2 purity | DC power consumption |
Pure water consumption |
| Rubri-A1-100 | 100 | ≤1.6Mpa （adjustable） |
≥99.999% (higher purity customizable) |
≤4.8kwh/Nm³ H2 | 100L/h |
Usage Scenarios
Scenarios for Alkaline electrolyzer system:
To power hydrogen vehicles
As synthetic fuels
For upgrading oil/biomass
To produce green NH3
For metal refining
For power and heat generation
Why Choose US
1.Scalable Production Capacity
Flexible output range from 1 Nm³/h to 2000 Nm³/h to meet diverse industrial and energy needs
2.Ultra-High Purity Hydrogen
Delivers 99.9999% pure H₂ (optional) for applications requiring highest grade hydrogen
3.Custom Certification Packages
Multiple international certifications available (ATEX, CE, ISO, etc.) to meet regional compliance requirements
4.Integrated High-Pressure Solutions
Customizable compression and storage systems (up to 30MPa) for optimized hydrogen handling
5.Comprehensive After-Sales Support
Full technical documentation package:
Project Cases
How to Get a Quote
If you are interested in getting a quote of our Alkaline Electrolyzer equipments, please feed us the following:
1. What will the hydrogen be used for?
2. What hydrogen production capacity do you want?
or How many kw power do you have for the electrolyzer plant?
3. What hydrogen purity and outlet pressure do you want?
4. Do you have any plans for hydrogen storage?
5. Do you want the equipment to be included in container?
6. Do you want auxiliary equipment such as water purifier, air compressor and chiller unit to be included?
Alkaline Water Electrolysis for green hydrogen production. System mainly includes power supply unit, PLC unit, electrolyzer stack, alkali circulating unit, gas-liquid separation unit and hydrogen purification unit.
