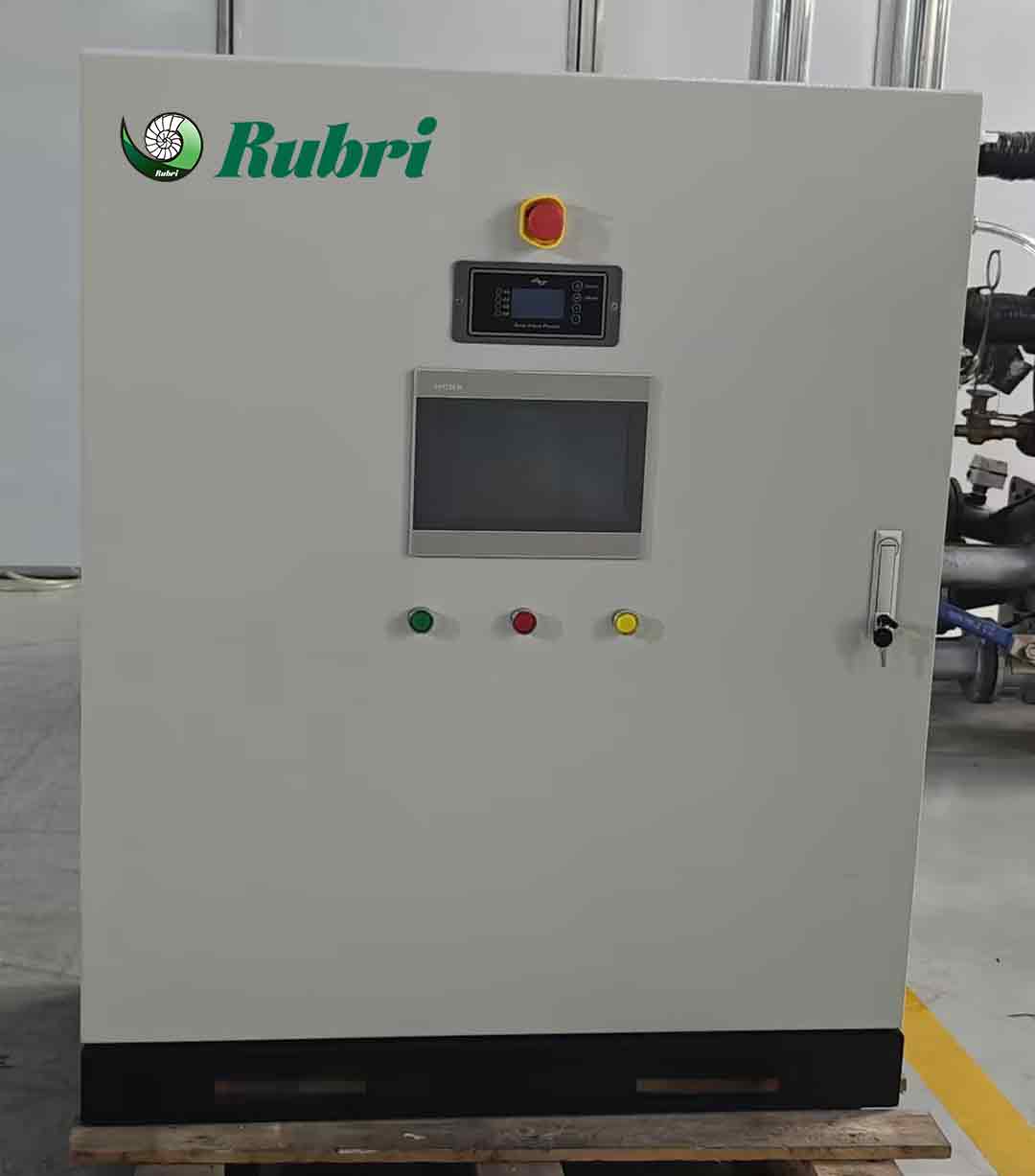

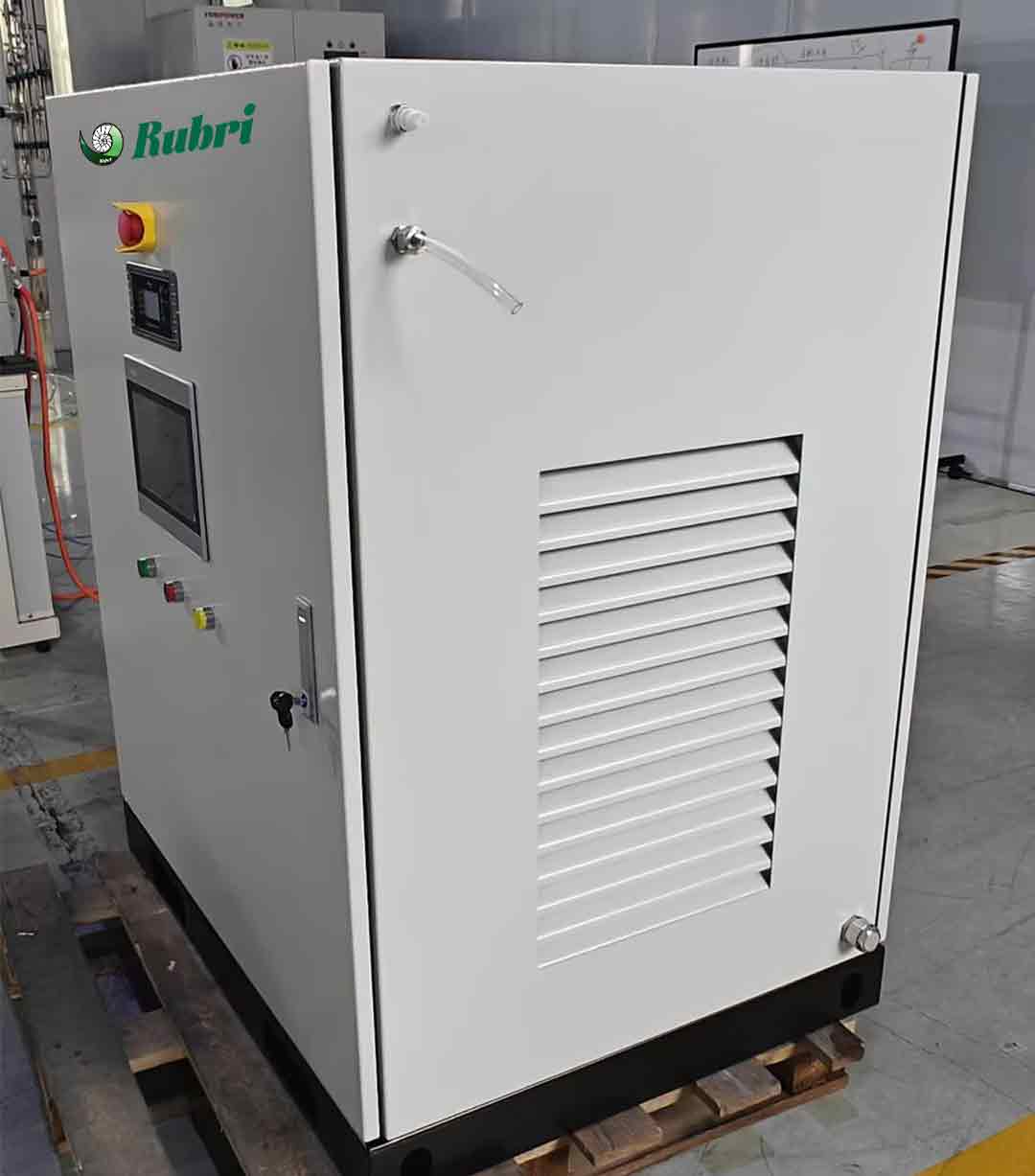

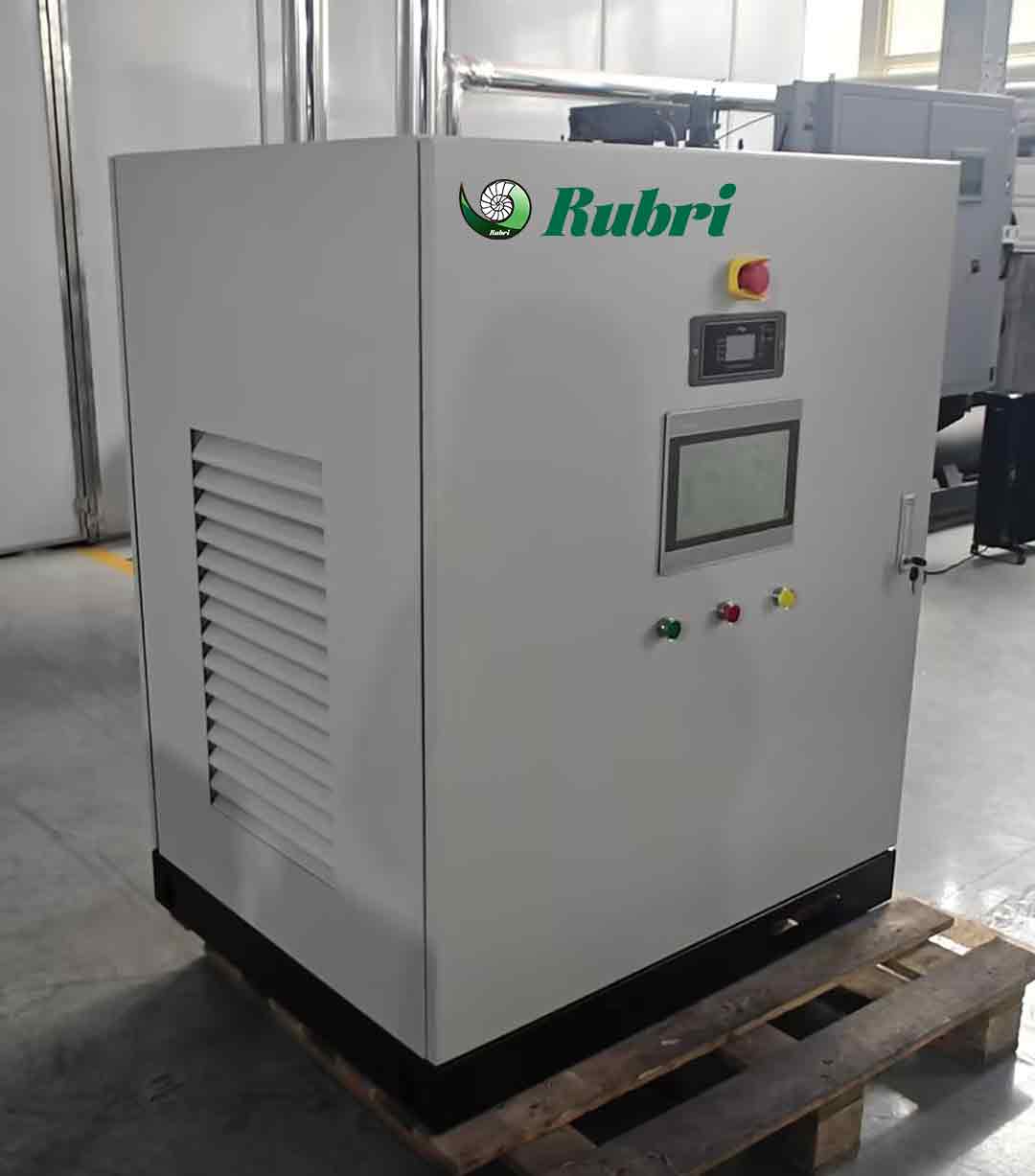

Rubri FCL01000 10kW PEM Fuel Cell Water Cooled Hydrogen Power Generator
Product Description
10kW Water/liquid cooled hydrogen fuel cells can be used in larger power generation systems.Metal or graphite bipolar plate optional, DC or AC output optional, customizable for various using scenarios.
Product Description
10kW Water/liquid cooled hydrogen fuel cells can be used in larger power generation systems.Metal or graphite bipolar plate optional, DC or AC output optional, customizable for various using scenarios.
A hydrogen fuel cell is a power generation device that directly converts the chemical energy of hydrogen and oxygen into electrical energy.The basic principle is the reverse reaction of electrolysis of water. The hydrogen and oxygen are supplied to the anode and the cathode, respectively. After the hydrogen diffuses out through the anode and reacts with the electrolyte, electrons are released to the cathode through the external load.
A hydrogen fuel cell power system is a complete and stable generation system. Its core component is fuel cell stack, which is made of two or more single cells and other necessary structural parts. To be specific, the single cell is the basic unit which consists of a set of MEA and corresponding unipolar plates or bipolar plates of a PEM fuel cell.
Product Advantage
1. Clean-0
With zero carbon emission and no pollution during the process of generating electricity, fuel cell is exceedingly friendly to our environment.
2. Adaptable
PEM fuel cell can adapt to various climates and geographical environments including low temperature environments, and can meet the needs of 100W-10MW in a variety of using scenarios.
3.Efficient-60%
Hydrogen PEM fuel cell have a power generation efficiency of up to 60%, which is much higher than conventional combustion-based power generation efficiency of 33-35%.
4.Reliable
PEM fuel cell needs low maintenance during operation and have service life up to 20000 hours.
Safety Guidelines for Fuel Cell Systems
liquid-cooled fuel cell systems require special care during handling to avoid damage to their internal components, such as the membrane electrode assembly (MEA), gas flow channels, and cooling system.
Product Features
Rubri offers:
Diversified options of fuel cell, such as air cooling or liquid cooling hydrogen fuel cell, as well as the choice of AC or DC output, with customizable output voltage.
Single fuel cell covers a wide power range, from 50W to 300KW, with the capability to expand up to 10MW.
Products customized for different usage scenarios, offering professional design and production services to meet specific needs.
Excellent after-sale service, including technical support, product knowledge training, installation guidance, and a 1-year warranty for hydrogen fuel cells.
--------------占位---------------
Pamameter
|
Project |
Unit |
Technical parameters |
|
System Rated Power |
kW |
10 |
|
Stack Rated Power |
kW |
16 |
|
Stack Voltage Rang |
VDC |
94～60 |
|
Output Voltage (Default DC |
|
A C 2 3 0 V / 5 0 H Z |
|
Number of Cells |
Piece |
94 |
|
Type |
/ |
Graphite |
|
Heat Dissipation Method |
/ |
Liquid Cooling |
|
System Dimensions |
mm |
650*620*920 |
|
Estimated Weigh |
kg |
180 |
|
Design parameters include |
/ |
Air Loop Components |
Multiple Usage Scenarios
Hydrogen fuel cell can be used in various scenarios:
1.PEM fuel cell research
2.Hydrogen fuel cell experiment
3.Green hydrogen energy demonstration
4.Fuel cell powered bike/scooter/motorcycle
5.Hydrogen unmanned Aerial Vehicle
6.Portable hydrogen power station
Water/liquid cooled hydrogen fuel cells can be used in larger power generation systems.Metal or graphite bipolar plate optional, DC or AC output optional, customizable for various using scenarios.
