With higher cooling efficiency to quickly take away the heat generated, water/liquid cooled hydrogen fuel cells can be used in larger power generation systems.
Brand :
RubriRated output power :
1000WDC/DC converter :
Optional (24VDC)Customization :
AvailableCooling :
Water coolingMOQ :
1 setProduct Description

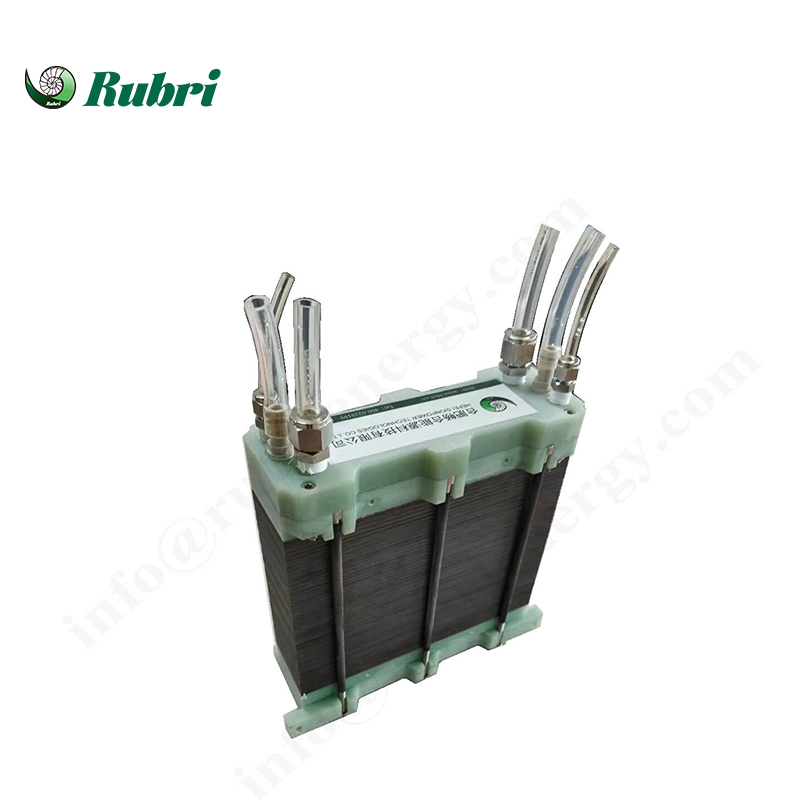

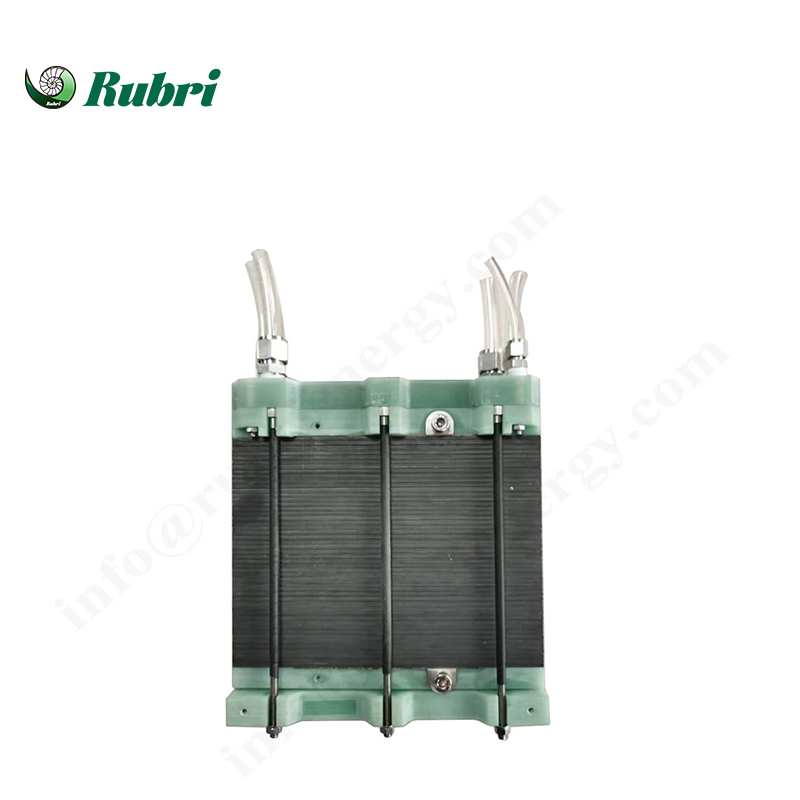

1000W Water Cooled Hydrogen Fuel Cell PEM Fuel Cell
A hydrogen fuel cell is a power generation device that directly converts the chemical energy of hydrogen and oxygen into electrical energy.
The basic principle is the reverse reaction of electrolysis of water. The hydrogen and oxygen are supplied to the anode and the cathode, respectively. After the hydrogen diffuses out through the anode and reacts with the electrolyte, electrons are released to the cathode through the external load.
A hydrogen fuel cell power system is a complete and stable generation system.
Its core component is fuel cell stack, which is made of two or more single cells and other necessary structural parts.
To be specific, the single cell is the basic unit which consists of a set of MEA and corresponding unipolar plates or bipolar plates of a PEM fuel cell.
Product Advantage
1. Clean-0
With zero carbon emission and no pollution during the process of generating electricity, fuel cell is exceedingly friendly to our environment.
2. Adaptable
PEM fuel cell can adapt to various climates and geographical environments including low temperature environments, and can meet the needs of 100W-10MW in a variety of using scenarios.
3. Efficient-60%
Hydrogen PEM fuel cell have a power generation efficiency of up to 60%, which is much higher than conventional combustion-based power generation efficiency of 33-35%.
4. Reliable
PEM fuel cell needs low maintenance during operation and have service life up to 20000 hours.
Pamameter

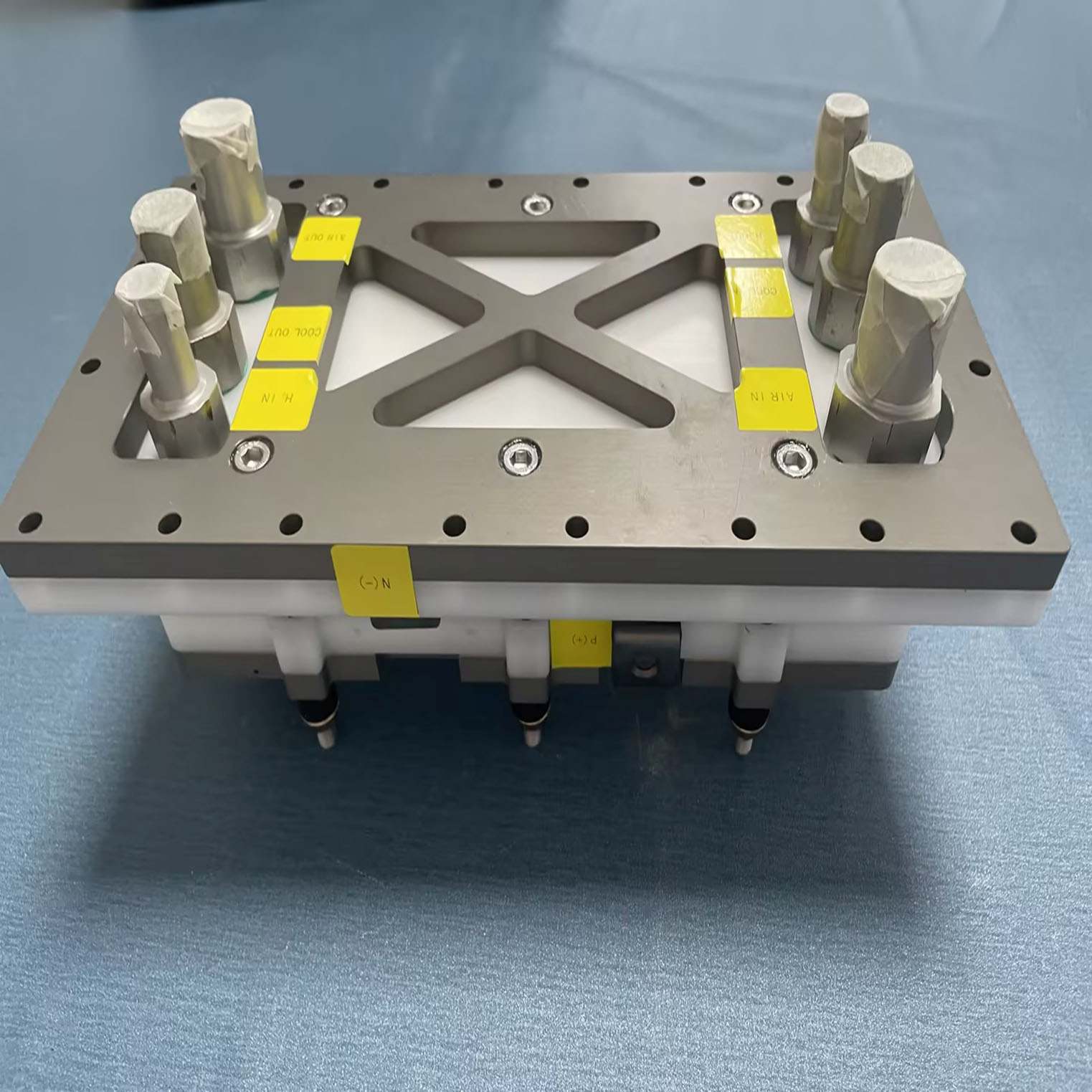

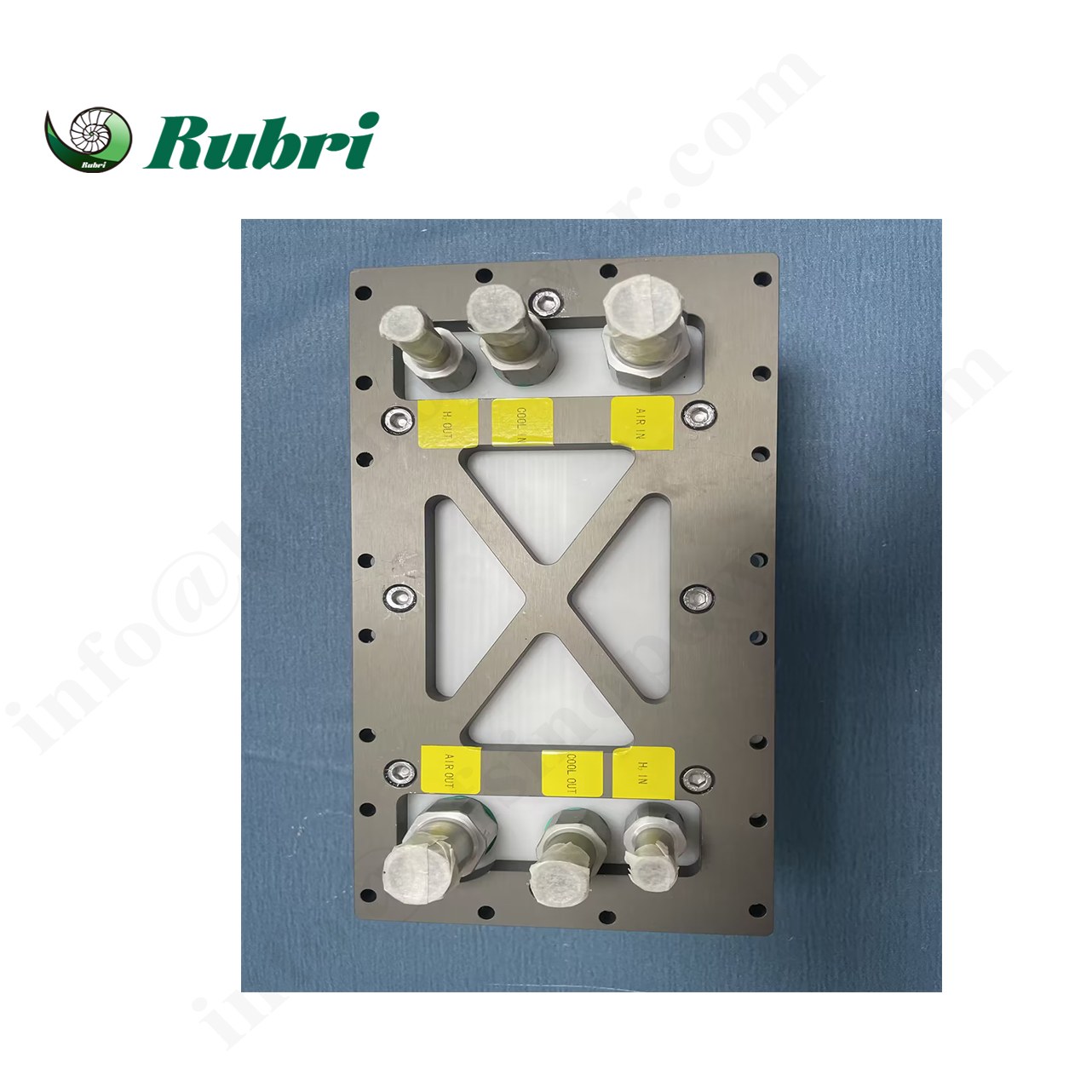

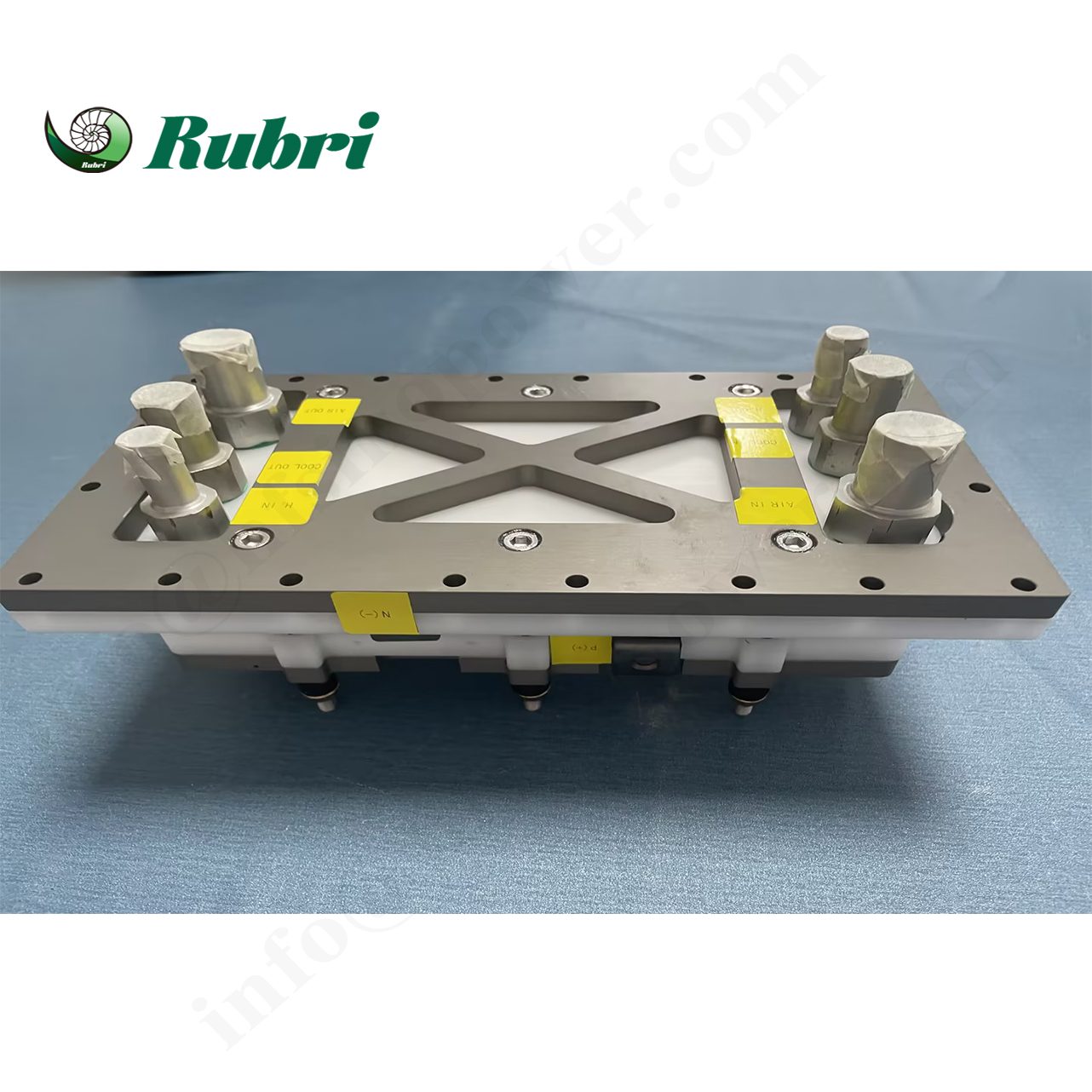

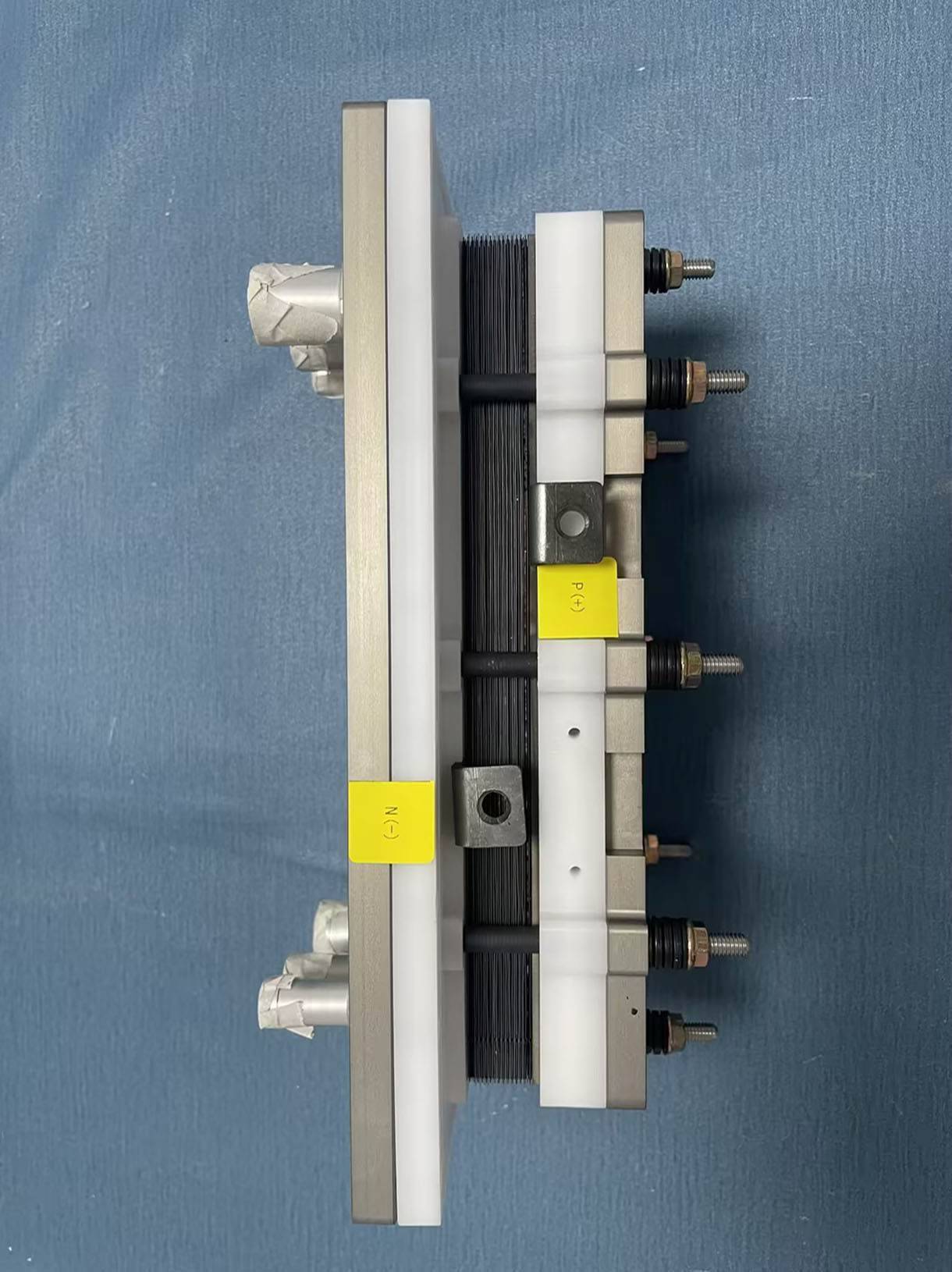

1kW Hydrogen Fuel Cell
Rated Output Power | 1kW | Fuel Cell Type | PEMFC |
Output Voltage | 48VDC(optional) | Cooling | Water cooling |
H2 Purity |
≥99.99% |
Cold Start Time | 30S |
Product Features
Rubri offers:
Diversified options of fuel cell, such as air cooling or liquid cooling hydrogen fuel cell, as well as the choice of AC or DC output, with customizable output voltage.
Single fuel cell covers a wide power range, from 50W to 300KW, with the capability to expand up to 10MW.
Products customized for different usage scenarios, offering professional design and production services to meet specific needs.
Excellent after-sale service, including technical support, product knowledge training, installation guidance, and a 1-year warranty for hydrogen fuel cells.
Multiple Usage Scenarios
Hydrogen fuel cell can be used in various scenarios:
1. PEM fuel cell research
2. Hydrogen fuel cell experiment
3. Green hydrogen energy demonstration
4. Fuel cell powered bike/scooter/motorcycle
5. Hydrogen unmanned Aerial Vehicle
6.Portable hydrogen power station
