On-board water-cooled hydrogen fuel cells are highly efficient and environmentally friendly energy conversion devices designed specifically for vehicle powertrains. They generate electricity through the electrochemical reaction of hydrogen and oxygen to drive the electric motor, while emitting only water, achieving zero pollution. A water cooling system ensures the battery maintains an optimal temperature during operation, enhancing efficiency and stability.
Weight :
246KGSize :
1005*754*662mmBrand :
RubriRated output power :
450-750VDCCustomization :
supportCooling :
Water CoolingMOQ :
1110KW Water Cooled Hydrogen Fuel Cell System
Product Features
110KW Water cooled hydrogen fuel cell system for vehicle
Simplified system Integration small footprint, fully integrated fuel cell module with interfaces located on one panel for better access and flexibility in commercial vehicle design. Performance in extreme conditions tolerant to a wider range of operating conditions
Product Parameter
| Model | FCL10000-0A1 |
| Rated Power(KW) | 110 |
| Peak Power(KW) | 111 |
| Output Voltage Range(VDC) | 420-700 |
| Output Current Range(A) | 0-250 |
| system Efficiency | 45%-46% |
| Stack Power(KW) | 160 |
| Number of Cells Per cell | 340 |
| Mass Power Density(W/kg) | 440 |
| Start-up Times(S) | 20 |
| Oxidizer | Air |
| Air Supply Flow Rate(g/s) | 135 |
| Hydrogen Pressure(Absolute)(bar) | 17 |
| Hydrogen Supply Flow Rate(g/s) | 3.5 |
| Hydrogen Purity | ≥99.99%， Requirements of GB/T37244-2018 |
Recommending Application Power
| Net Power Level | 110KW |
| Application | medium & heavy duty applications |

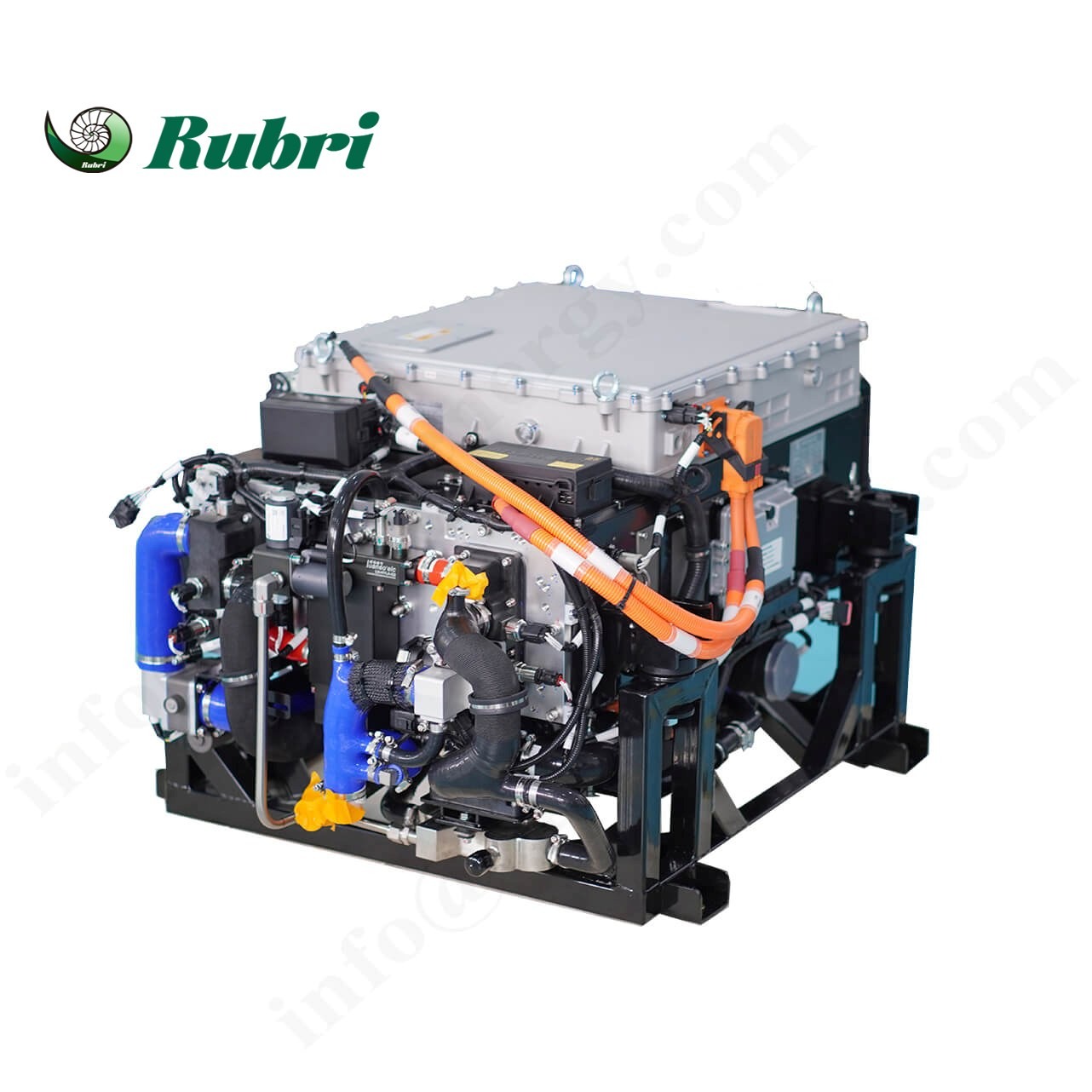

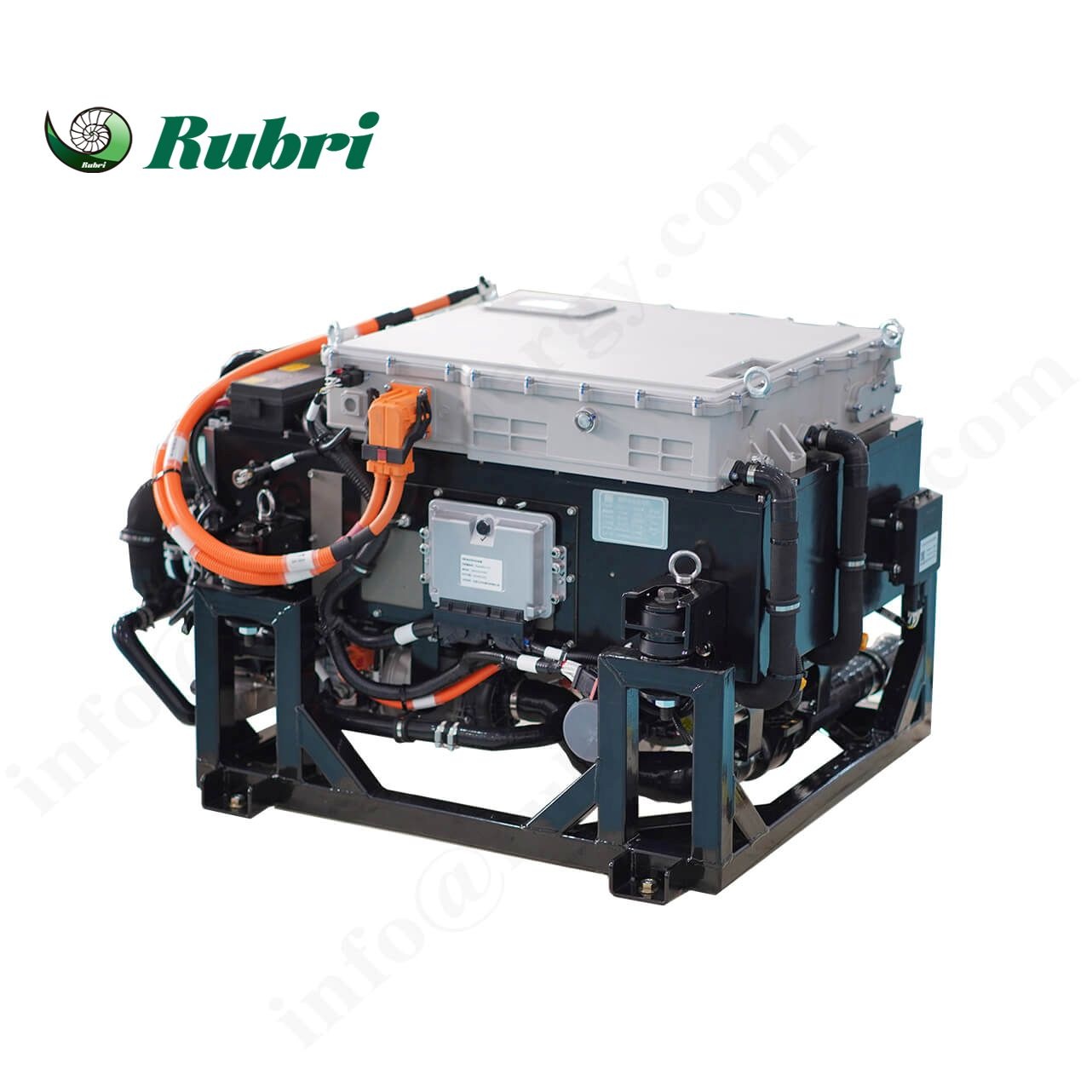

Product Photos
