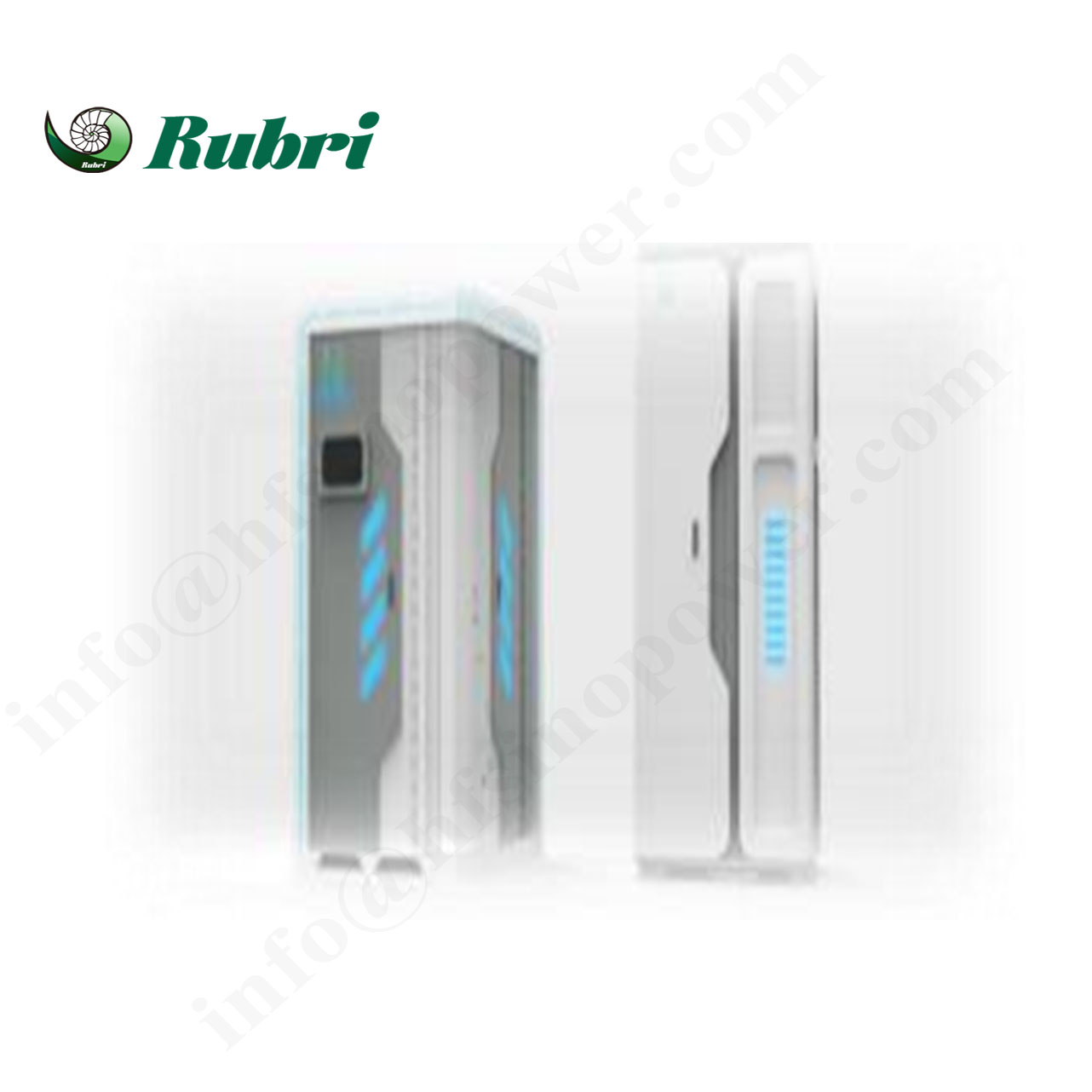

Low-power - 100 kW class ammonia-hydrogen/pure hydrogen fuel cell power generation equipment , based on liquid ammonia ( NH3 is used as a hydrogen storage medium, mainly including hydrogen production from ammonia decomposition and hydrogen-nitrogen mixed gas fuel . The battery has two core components. First, an ammonia decomposition catalyst produces a mixture of 75% hydrogen and 25% nitrogen. Then, after removing trace amounts of ammonia and undergoing heat exchange and cooling, the mixture enters the fuel system. The battery generates electricity, and the energy flow and power supply of the system are coordinated based on the real-time detection and control module .
Brand :
Rubri
Low-power - 100 kW class ammonia-hydrogen/pure hydrogen fuel cell power generation equipment , based on liquid ammonia ( NH3 is used as a hydrogen storage medium, mainly including hydrogen production from ammonia decomposition and hydrogen-nitrogen mixed gas fuel . The battery has two core components. First, an ammonia decomposition catalyst produces a mixture of 75% hydrogen and 25% nitrogen. Then, after removing trace amounts of ammonia and undergoing heat exchange and cooling, the mixture enters the fuel system. The battery generates electricity, and the energy flow and power supply of the system are coordinated based on the real-time detection and control module .
at the same time This module is multi-fuel adaptable and compatible with pure hydrogen in addition to hydrogen and nitrogen. It provides technical solutions for pure hydrogen power generation scenarios .
Low-power - 100kW-class power generation solutions

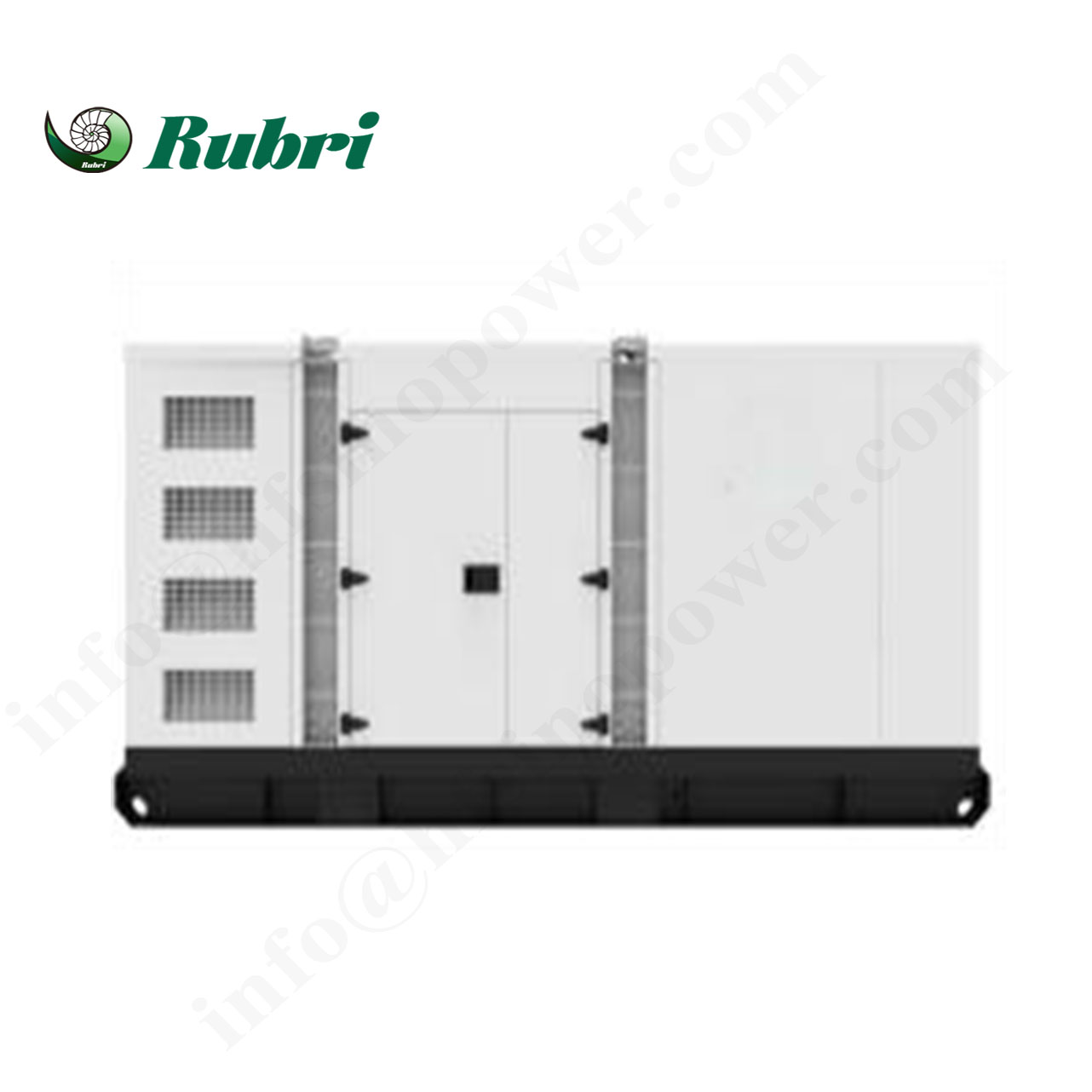

Low-power - 100 kW class ammonia-hydrogen/pure hydrogen internal combustion power generation equipment , based on liquid ammonia ( NH3 ) is used as a hydrogen storage medium , mainly including two types: hydrogen production through ammonia decomposition and hydrogen fusion internal combustion engines. Core component. It utilizes the high-temperature waste heat exhaust gas from an internal combustion engine, highly integrating it with a low-temperature ammonia decomposition hydrogen production reactor. The ammonia reactor then decomposes ammonia into 75% hydrogen and 25% nitrogen, which, along with ammonia... After the air and gas are mixed, they enter the cylinder of the internal combustion engine, where they are ignited and burned to do work, providing power or generating electricity.
at the same time Our company's 100-kilowatt-class ammonia-hydrogen internal combustion engine has multi-fuel adaptability and is compatible with pure hydrogen, providing technical solutions for pure hydrogen power generation scenarios .
Megawatt-class power generation solutions
Megawatt-class ammonia-hydrogen power generation equipment uses liquid ammonia ( NH 3 ) As raw material, it enters the gasifier via a transfer pump and is then decomposed into a hydrogen-nitrogen mixture by an electrically heated reactor. , Heat supply for burner start-up . Liquid ammonia was then switched to the main route. , Deep decomposition in flue gas reactor The decomposed gas is cooled by a water cooler. After the compressor pressurizes , according to The residual ammonia is removed and recycled via TSA temperature-switching adsorption. , It is then separated into a high-purity hydrogen-nitrogen mixture by PSA pressure swing adsorption. . Some gas is directly supplied as fuel
Battery power generation; Another portion of the PSA vent gas enters the burner to heat the flue gas reactor. This will form a highly efficient and clean power generation system.
Knowledge sharing, technology cooperation, and industry docking activities centered around clean energy technologies between two countries, institutions, or enterprises. The core objective is to accelerate technological innovation, reduce costs, and promote the large-scale application of green energy through collaboration.
Read More
Neutron source is an important experimental platform for advanced nuclear energy research and development and cross-application research of nuclear technology. The small neutron source SNEG uses the ionization of the ECR ion source to generate deuterium ions, which induce deuterium ion beams and accelerate the bombardment of the target under the action of a DC high-voltage electric field, and generate 2.5 MeV neutrons through the deuterium-deuterium reaction. Small neutron sources can be used for neutron physics experimental research, detector calibration, neutron irradiation, neutron component detection, neutron photography, neutron cancer treatment, isotope production, etc.
Read More
We provide nickel plating and electrolytic polishing services to enhance the corrosion resistance and surface precision of metal components (e.g., hydrogen storage equipment parts).
Read More
Low-power - 100 kW class ammonia-hydrogen/pure hydrogen fuel cell power generation equipment , based on liquid ammonia ( NH3 is used as a hydrogen storage medium, mainly including hydrogen production from ammonia decomposition and hydrogen-nitrogen mixed gas fuel . The battery has two core components. First, an ammonia decomposition catalyst produces a mixture of 75% hydrogen and 25% nitrogen. Then, after removing trace amounts of ammonia and undergoing heat exchange and cooling, the mixture enters the fuel system. The battery generates electricity, and the energy flow and power supply of the system are coordinated based on the real-time detection and control module .
Read More
Ammonia efficiently decomposes into hydrogen and nitrogen under catalyst action; after deammoniation and purification, high‑purity hydrogen is obtained, ensuring safe production. Using green ammonia enables zero‑carbon hydrogen production. The hydrogen is pressurized, stored, and precisely dispensed to vehicles via a sequential control panel and hydrogen dispenser, delivering an efficient and safe on‑site supply solution.
Read More
