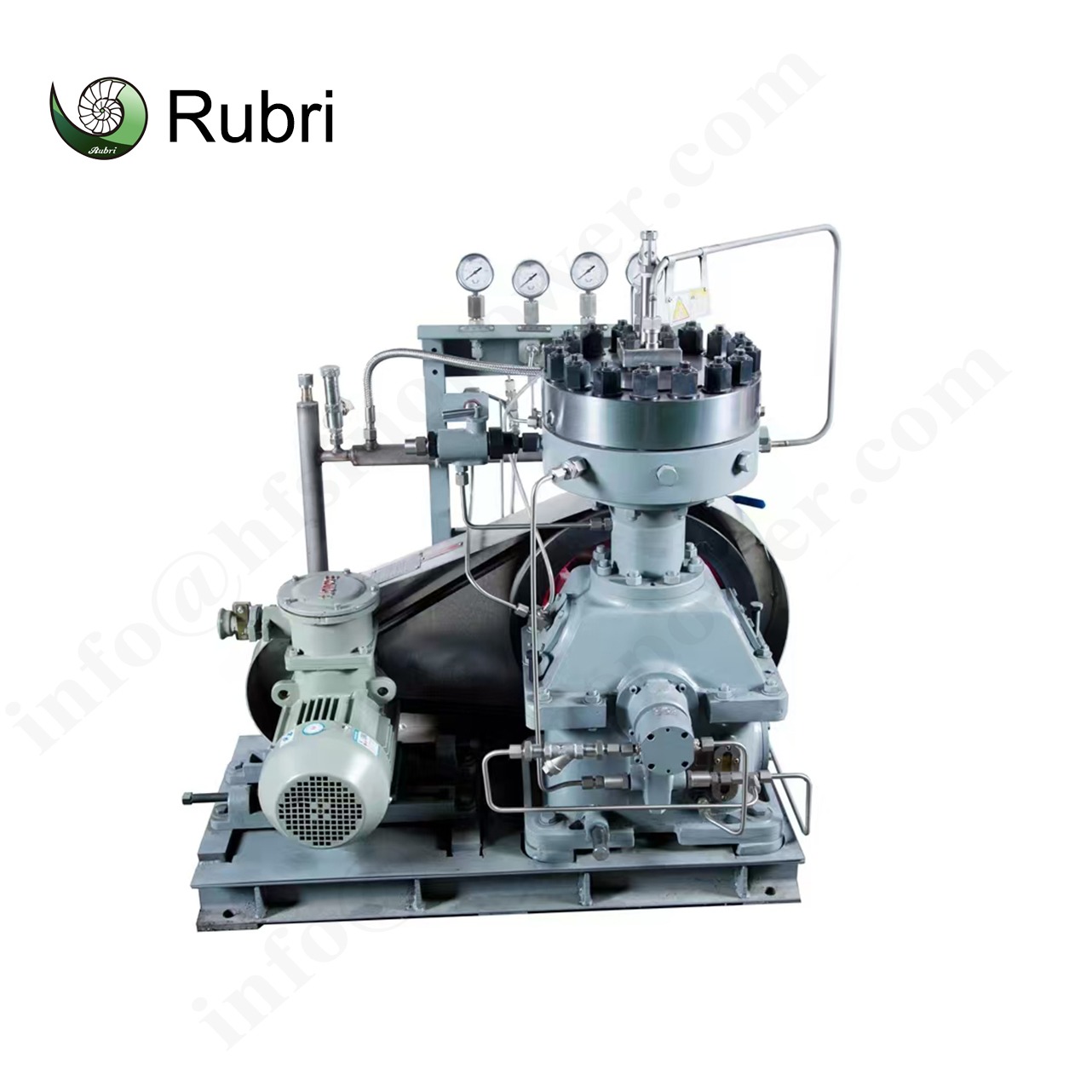

The core of the booster device, which is specially designed for hydrogen (H2) storage, transportation, filling and fuel cell applications, is to isolate the driving medium from the hydrogen through the diaphragm to ensure a safe and leak-free boosting process.
Brand :
RubriCustomization :
SupportProduct Description

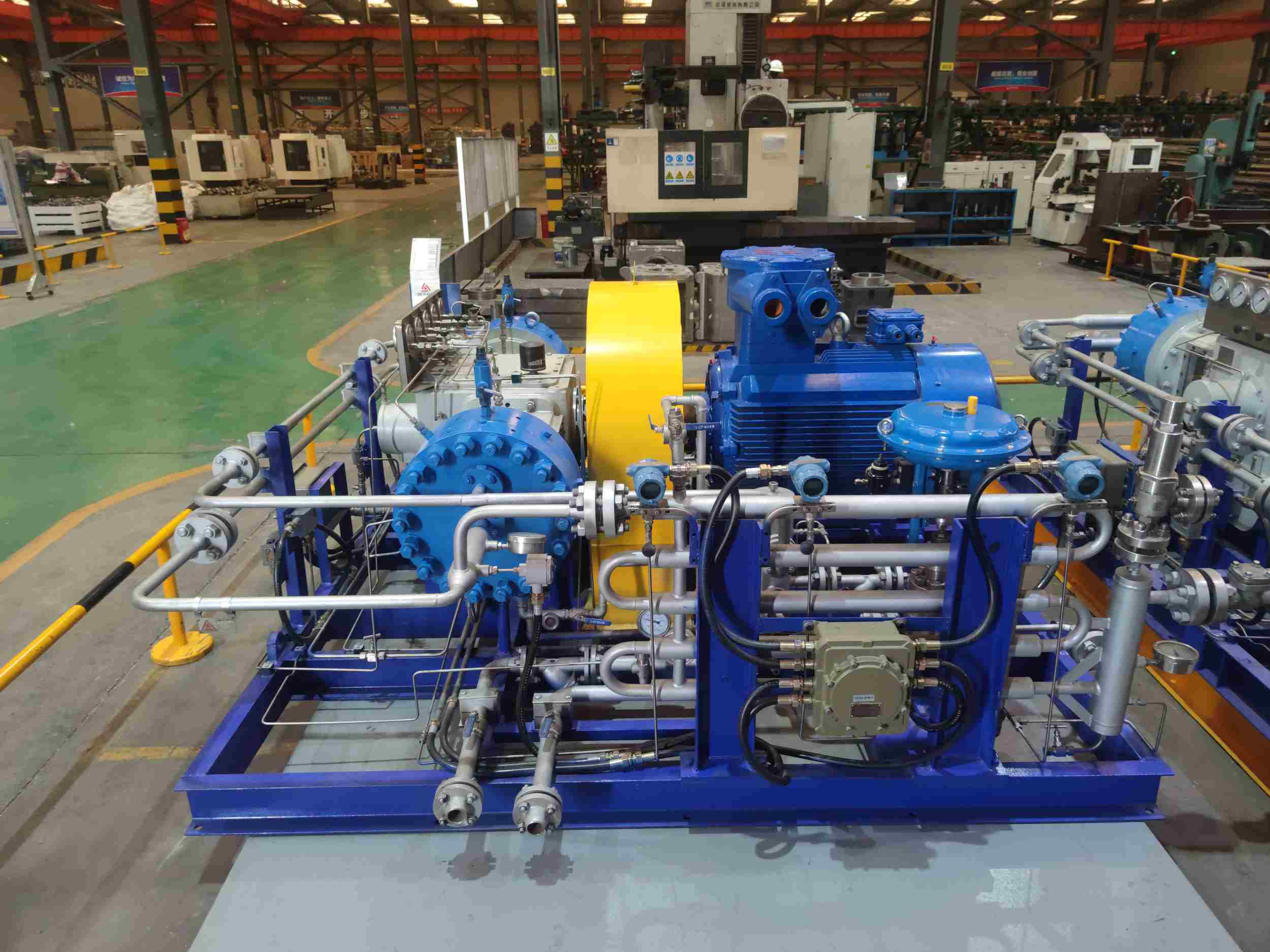

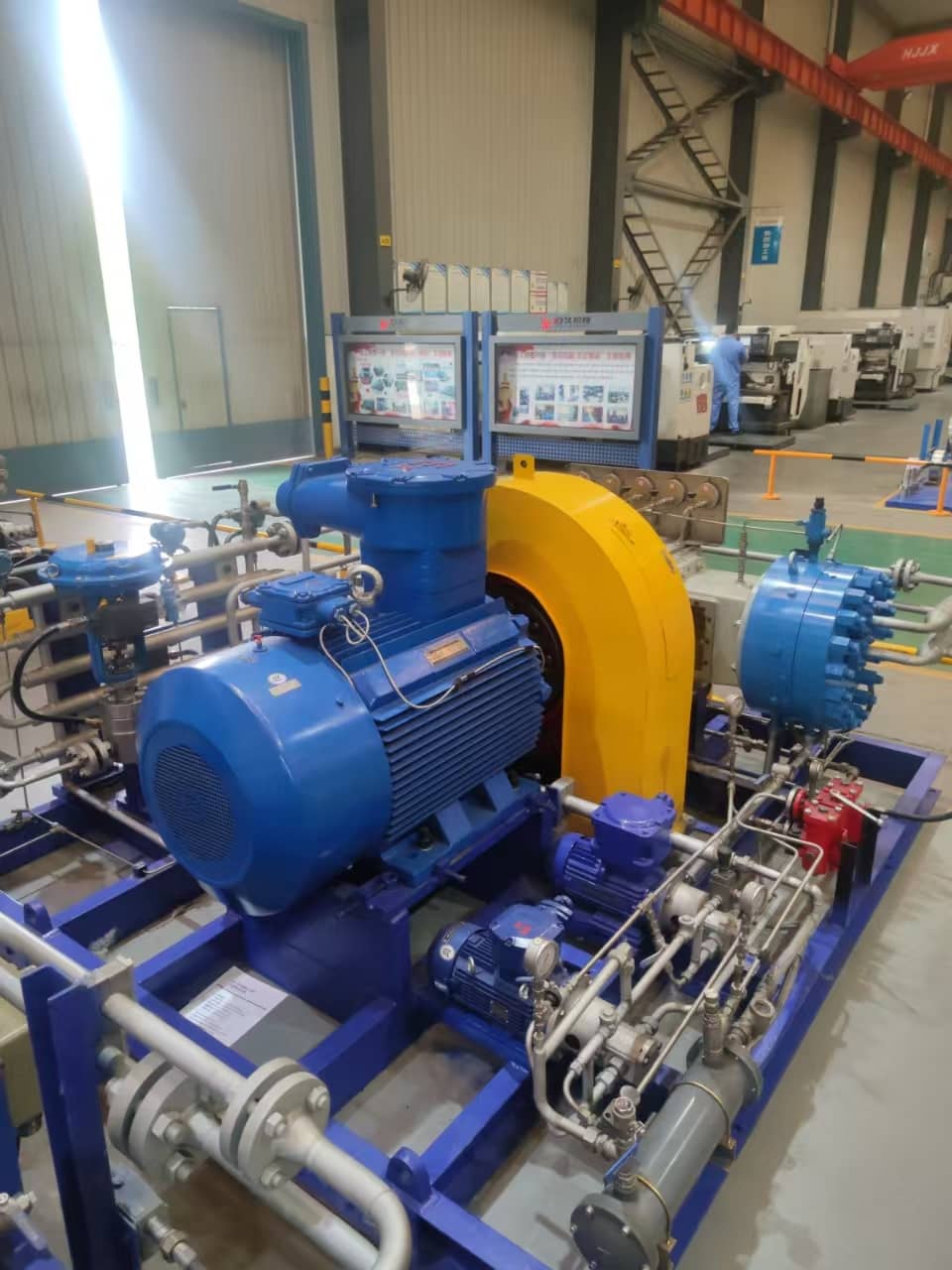

Diaphragm booster system
1. Core components
Metal/composite diaphragms(Pressure range: 35MPa~100MPa, cycle life>100,000 times.)
Drive unit:Pneumatic drive/Hydraulic drive
Hydrogen pipeline system
2. Key technologies
Laser welding or metal bellows sealing is used to avoid micro-leakage caused by bolted connections.
Thermal management
Electrical components meet explosion-proof standards, and the housing is grounded to eliminate static electricity.
Application scenarios:
Pressurize the long tube trailer (20MPa) to the station storage tank (45MPa) or vehicle (70MPa).
Provide hydrogen with stable pressure (such as 0.5~1.2MPa) for the fuel cell stack.
3.Green hydrogen storage and transportation
Hydrogen is produced by electrolysis of water and then pressurized to pipeline transmission pressure (such as 10~30MPa).

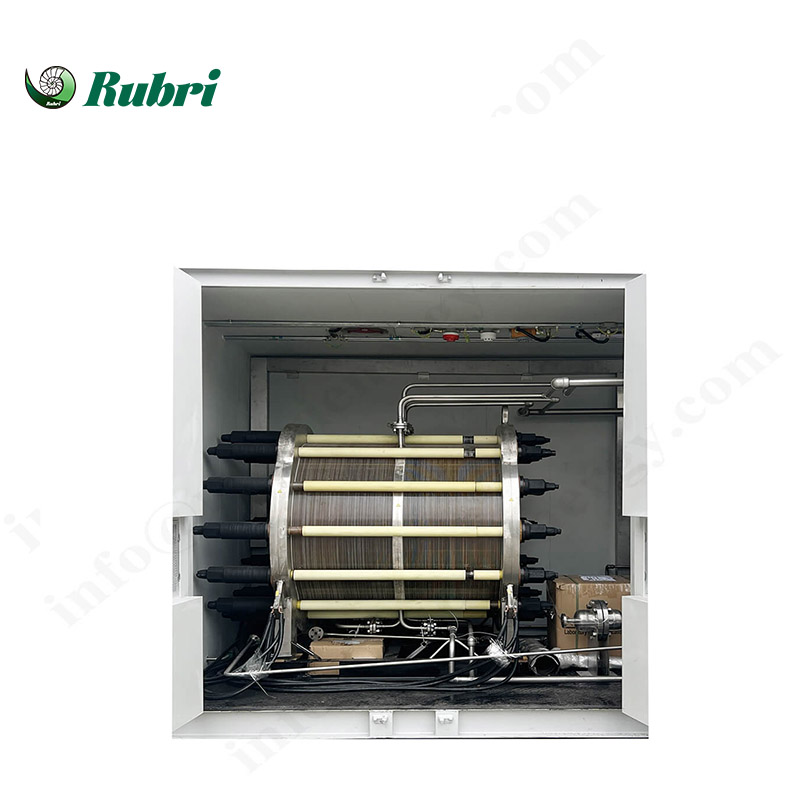

Alkaline Water Electrolysis for green hydrogen production. System mainly includes power supply unit, PLC unit, electrolyzer stack, alkali circulating unit, gas-liquid separation unit and hydrogen purification unit.
Read More
Alkaline water electrolysis for green hydrogen production. System mainly includes power supply unit, PLC unit, electrolyzer stack, alkali circulating unit, gas-liquid separation unit and hydrogen purification unit.
Read More
The compressor is a two-stage tandem piston compressor, driven by an adjustable-speed servo motor. The medium gas enters from the compressor inlet, and enters into the target chamber from the outlet through two-stage compression.
Read More

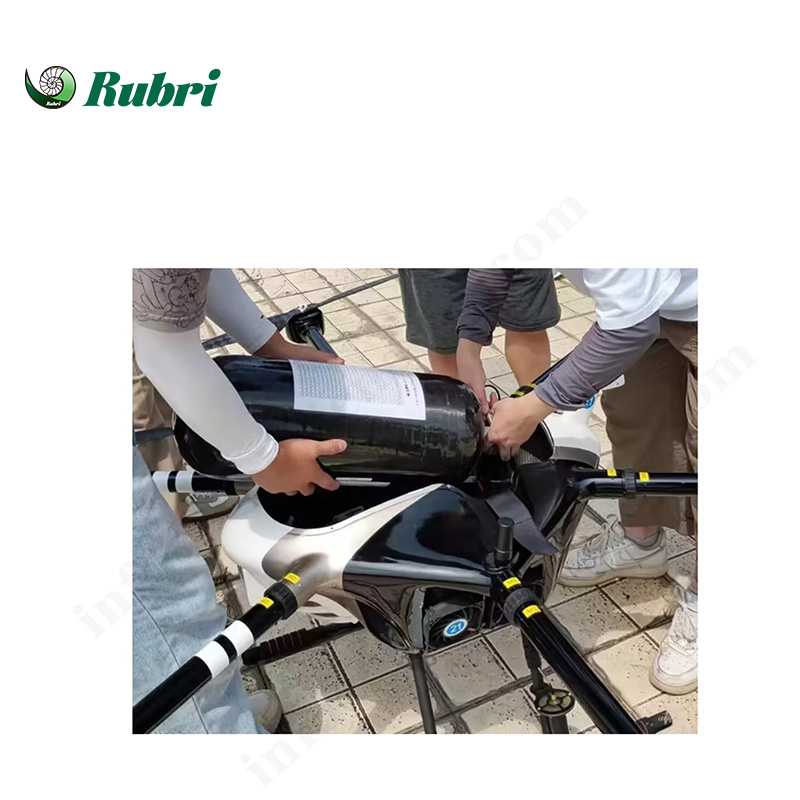

Light weight Type III 35Mpa hydrogen storage tank, made of carbon fiber composite, specially designed for hydrogen drones.
