9L 350bar Hydrogen Tank for Hydrogen Drones

carbon fiber hydrogen tank for drones
35Mpa hydrogen storage tank for UAV

9L 350bar Hydrogen Tank for Hydrogen Drones

Light weight Type III 35Mpa hydrogen gas tank, made of carbon fiber composite, specially designed for hydrogen drones and small hydrogen powered devices.

  • Brand :

    Rubri
New Products
  • Product Details

Product Description

35Mpa Hydrogen Tank for Hydrogen Drones

9L hydrogen tank

Type III 35Mpa hydrogen storage tanks, made of carbon fiber composite, with light weight and small size, are specially designed for hydrogen unmanned aerial vehicles and small hydrogen powered devices.

We provide multiple options such as 5L/9L/12L/20L. Tank valves (reducer included) are also available.

Specifications

Hydrogen storage tank for drones
Outer Diameter(mm) Volume(L)

Length(mm)

(valve not included)

Weight(kg) (accessories not
included)
Working Pressure
(MPa )
Cylinder port
152±2 5 395±6 1.85 35 M18*1.5
173±2.2 9 528±6 2.85 35 M18*1.5
196±2.3 12 540±6 3.85 35 M18*1.5
230±2.7 20 655±6 7 35 M18*1.5

Usage Scenarios

small 350bar hydrogen tank

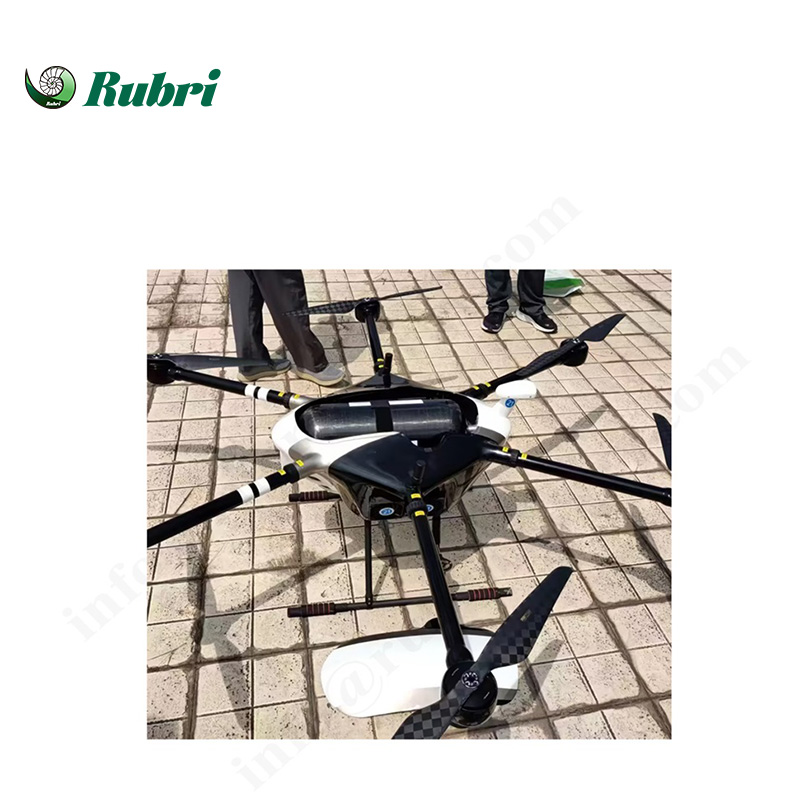

      1. Hydrogen powered drones;

      2. Hydrogen powered robots;

      3. hydrogen powered motorcycles;

      4. Other small fuel cell powered devices.
