A liquid-cooled hydrogen fuel cell (PEM) is an electrochemical power generation device based on proton exchange membrane (PEM) technology. This system boasts high efficiency, long life, and stable operation, and is widely used in transportation, energy storage, and distributed energy sectors.
Weight :
245KGSize :
887*709*704mmBrand :
RubriRated output power :
460-720VDCCustomization :
supportCooling :
Water CoolingMOQ :
1135KW Water Cooled Hydrogen Fuel Cell System
Product Features
135KW Water cooled hydrogen fuel cell system for vehicle
Simplified system Integration small footprint, fully integrated fuel cell module with interfaces located on one panel for better access and flexibility in commercial vehicle design. Performance in extreme conditions tolerant to a wider range of operating conditions
Product Parameter
| Model | FCL13500-FY1 |
| Rated Power(KW) | 135 |
| Peak Power(KW) | 137 |
| Output Voltage Range(VDC) | 460-720 |
| Output Current Range(A) | 188-293 |
| system Efficiency | 42.1% |
| Stack Power(KW) | 159 |
| Number of Cells Per cell | 478 |
| Mass Power Density(W/kg) | 676 |
| Start-up Times(S) | 6 |
| Oxidizer | Air |
| Air Supply Flow Rate(g/s) | 156 |
| Hydrogen Pressure(Absolute)(bar) | 17 |
| Hydrogen Supply Flow Rate(g/s) | 4.4 |
| Hydrogen Purity | ≥99.99%， Requirements of GB/T37244-2018 |
Recommending Application Power
| Net Power Level | 135KW |
| Application | medium & heavy duty applications |

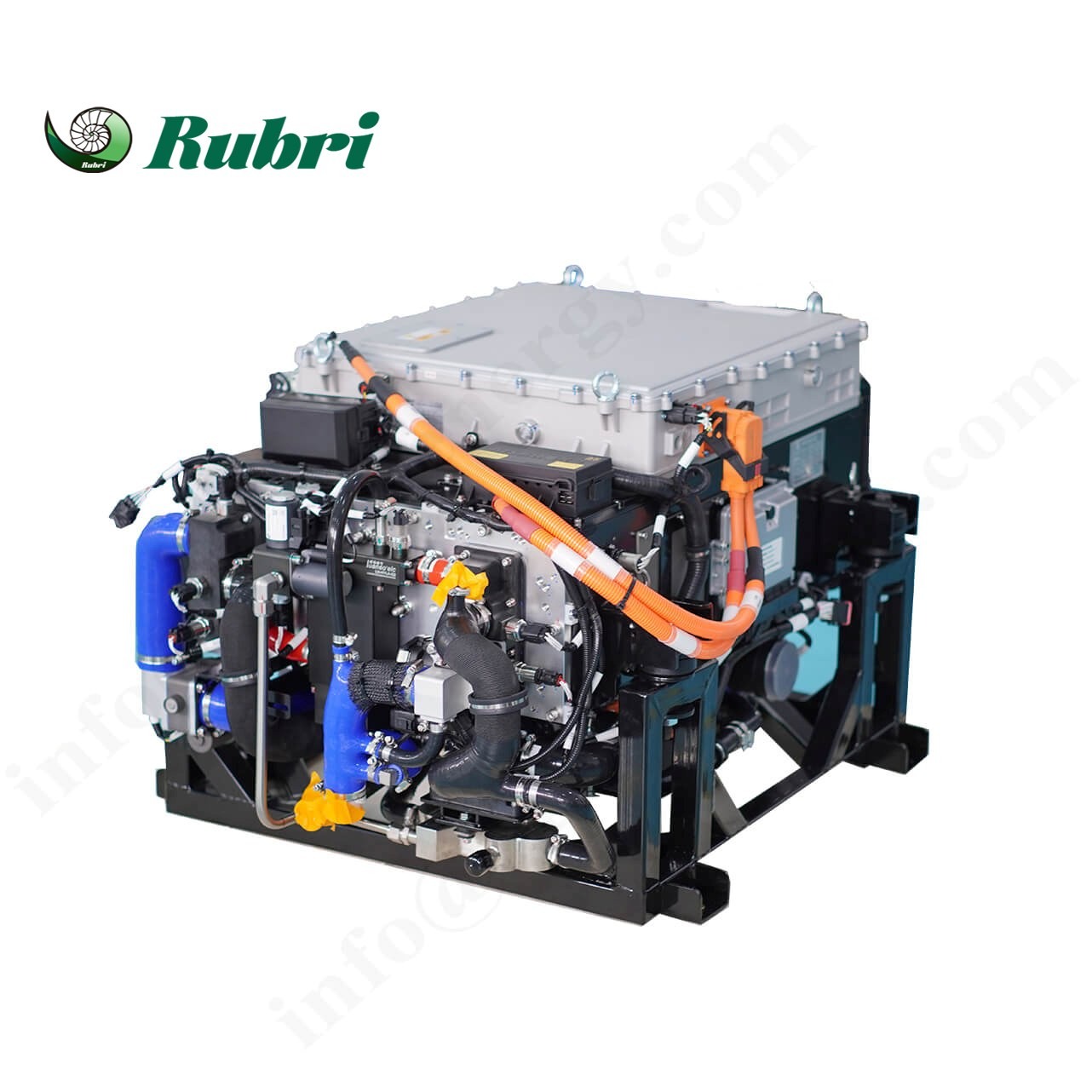

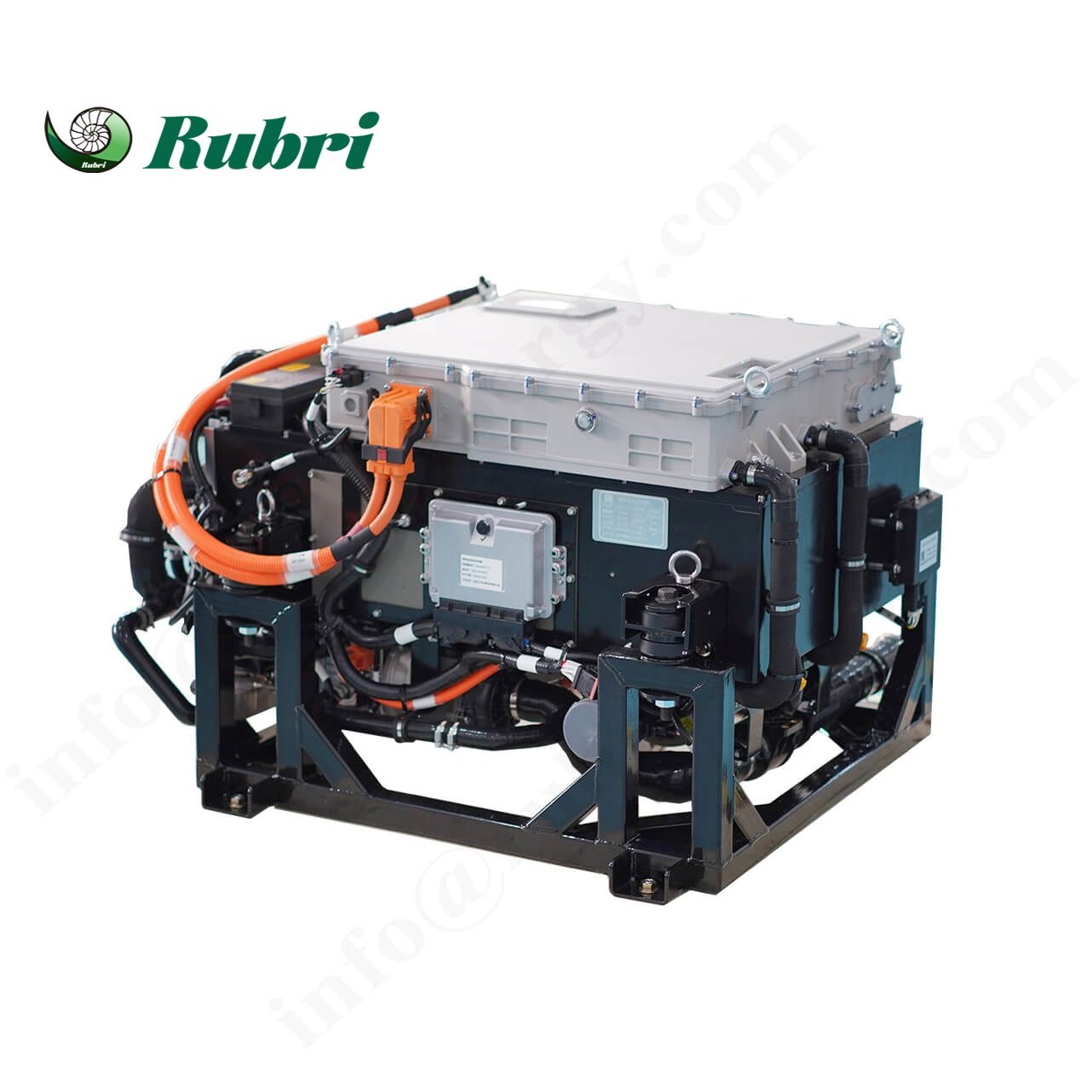

Product Photos
