Hydrogen fuel cells specifically designed for drones are a power system that efficiently converts the chemical energy of hydrogen into electrical energy. They are suitable for scenarios such as industry, military, and emergency response that have strict requirements on endurance.
Brand :
RubriRated output power :
5000WDC/DC converter :
48VDCCustomization :
AvailableCooling :
Air coolingMOQ :
1 setProduct Description

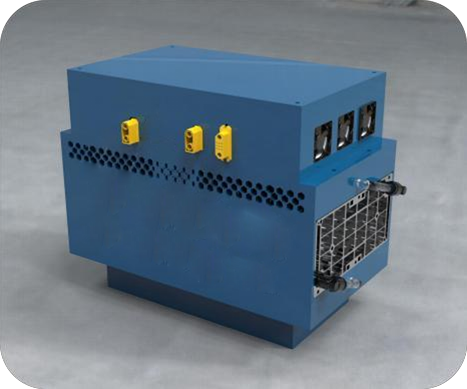

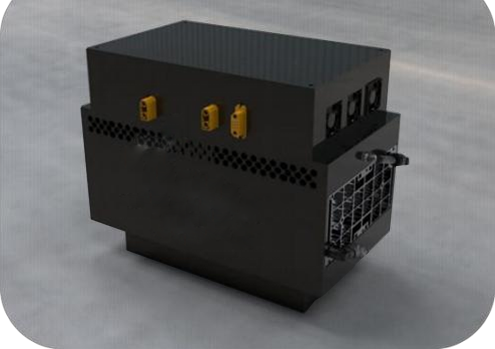

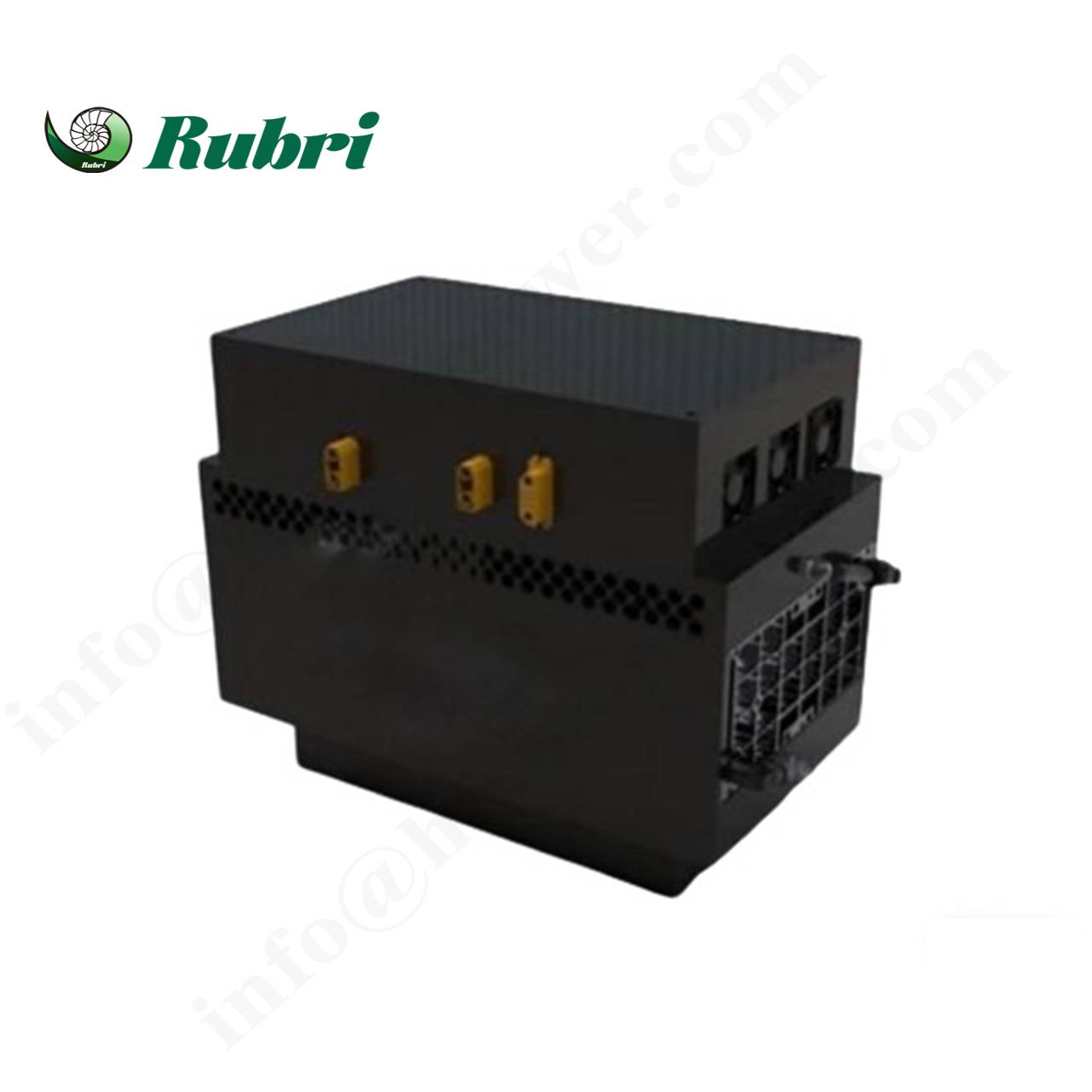

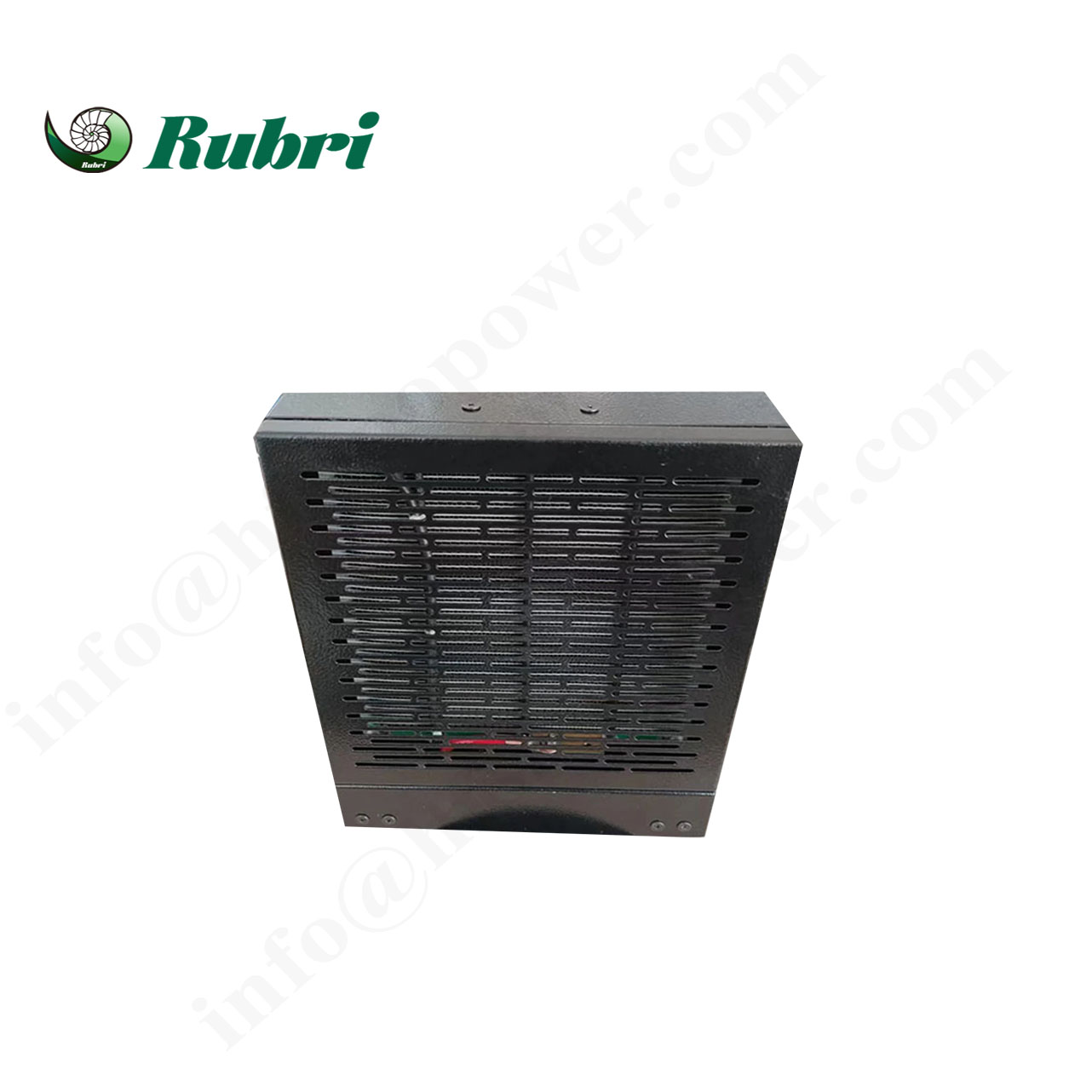

5kW Fuel Cell Air Cooled Hydrogen Power Generator for UAV
Hydrogen fuel cell is a power generation device that directly converts the chemical energy of hydrogen and oxygen into electrical energy.
The basic principle is the reverse reaction of electrolysis of water. The hydrogen and oxygen are supplied to the anode and the cathode, respectively. After the hydrogen diffuses out through the anode and reacts with the electrolyte, electrons are released to the cathode through the external load.
A hydrogen fuel cell power system is a complete and stable generation system.
Its core component is fuel cell stack, which is made of two or more single cells and other necessary structural parts.
To be specific, the single cell is the basic unit which consists of a set of MEA and corresponding unipolar plates or bipolar plates of a PEM fuel cell.
Parameters
5kw Hydrogen fuel cell system for UAV
| Rated power | 5000W |
|
Rated voltage |
48V |
| Rated current | 104 |
| System efficiency | ≥44% |
| Plate type | graphite |
| Startup time | 10s |
With higher cooling efficiency to quickly take away the heat generated, water/liquid cooled hydrogen fuel cells can be used in larger power generation systems.
Read More
PEM hydrogen fuel cell adopts Proton Exchange Membrane Technology to convert hydrogen and oxygen into water and electricity. A PEM fuel cell generates power without producing pollution or carbon emission.
Read More
The hydrogen power system on the drone consists of a hydrogen fuel cell, a controller, and a hydrogen cylinder.
Read More
PEM hydrogen fuel cell adopts Proton Exchange Membrane Technology to convert hydrogen and oxygen into water and electricity. A PEM fuel cell generates power without producing pollution or carbon emission.
Read More
PEM hydrogen fuel cell adopts proton exchange membrane technology to convert hydrogen and oxygen into water and electricity. A PEM fuel cell generates power without producing pollution or carbon emission.
Read More
Air cooled fuel cell adopts proton exchange membrane technology to generate power without producing pollution or carbon emission. The new energy fuel cell has a variety of application scenarios.
Read More
Hydrogen fuel cells specifically designed for drones are a power system that efficiently converts the chemical energy of hydrogen into electrical energy. They are suitable for scenarios such as industry, military, and emergency response that have strict requirements on endurance.
Read More
The core goal of the 1000W hydrogen fuel cell stack designed specifically for drones is to achieve an optimal balance between high power density, lightweight, fast response, and strong environmental adaptability to address the core pain point of short flight range for multi-rotor and vertical take-off and landing (VTOL) drones.
Read More
