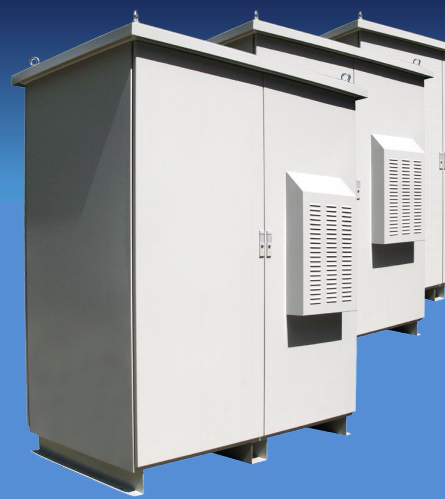

Stationary fuel cell solutions for power generation and backup power.
Using proven components heavy duty module portfolio, the zero-emission solution offers quiet operation, a smaller footprint.
System efficiency :
/Output current range :
10-200AOutput voltage range :
42-60VDCBrand :
RubriRated power :
10KWProduct Advantages:
Stationary power generator
1. Flexible and modular design minimizes space requirements
2. Scalable DC power output from 200kW to 1.2 MWs
3. Cabinet configurations with easy access doors and all interfaces’ connections situated in front for accessible service and maintenance
4. Standalone, skid mounted, or container solutions are available
Product Parameter
| NO. | Model number | Units | FCL01000-0A1 | FCL0200-0A1 | FCL03000-0A1 | FCL04000-0A1 | FCL05000-0A1 | FCL06000-0A1 | |
| 1 |
Performance parameters |
Rated power | KW | 10 | 20 | 30 | 40 | 50 | 60 |
| 2 | Peak power | KW | 11 | 21 | 31 | 41 | 51 | 61 | |
| 3 | Output voltage range | VDC | 42~60 | 260~400 | 450-750 | 450-750 | 450-750 | 550 | |
| 4 | Output voltage range | A | 10~200 | 20~110 | 55 | 53-58 | 66-111 | 109 | |
| 5 | System efficiency | / | |||||||
| 6 | Pile power | KW | 12 | 27 | 37 | 48 | 61 | 73 | |
| 7 | Number of cells per cell | Slice | 110 | 90 | 120 | 180 | 180 | 234 | |
| 8 | Mass power density | W/Kg | 100 | 200 | 222 | 222 | 300 | ||
| 9 | Startup time | s | 20 | 20 | 20 | 20 | 20 | 20 | |
| 10 | fuel | Oxidizing agent | / | ||||||
| 11 | Air supply flow rate | g/s | 22.95 | 35.53 | 42.642 | 55.968 | 67.961 | 83.152 | |
| 12 |
Hydrogen pressure (absolute pressure) |
bar | |||||||
| 13 |
Nitrogen supply flow rate |
g/s | 0.277 | 0.86 | 1.021 | 1.3487 | 1.6377 | 2 | |
Air cooled fuel cell adopts Proton Exchange Membrane Technology to generate power without producing pollution or carbon emission.The new energy fuel cell has a variety of application scenarios.
Read More

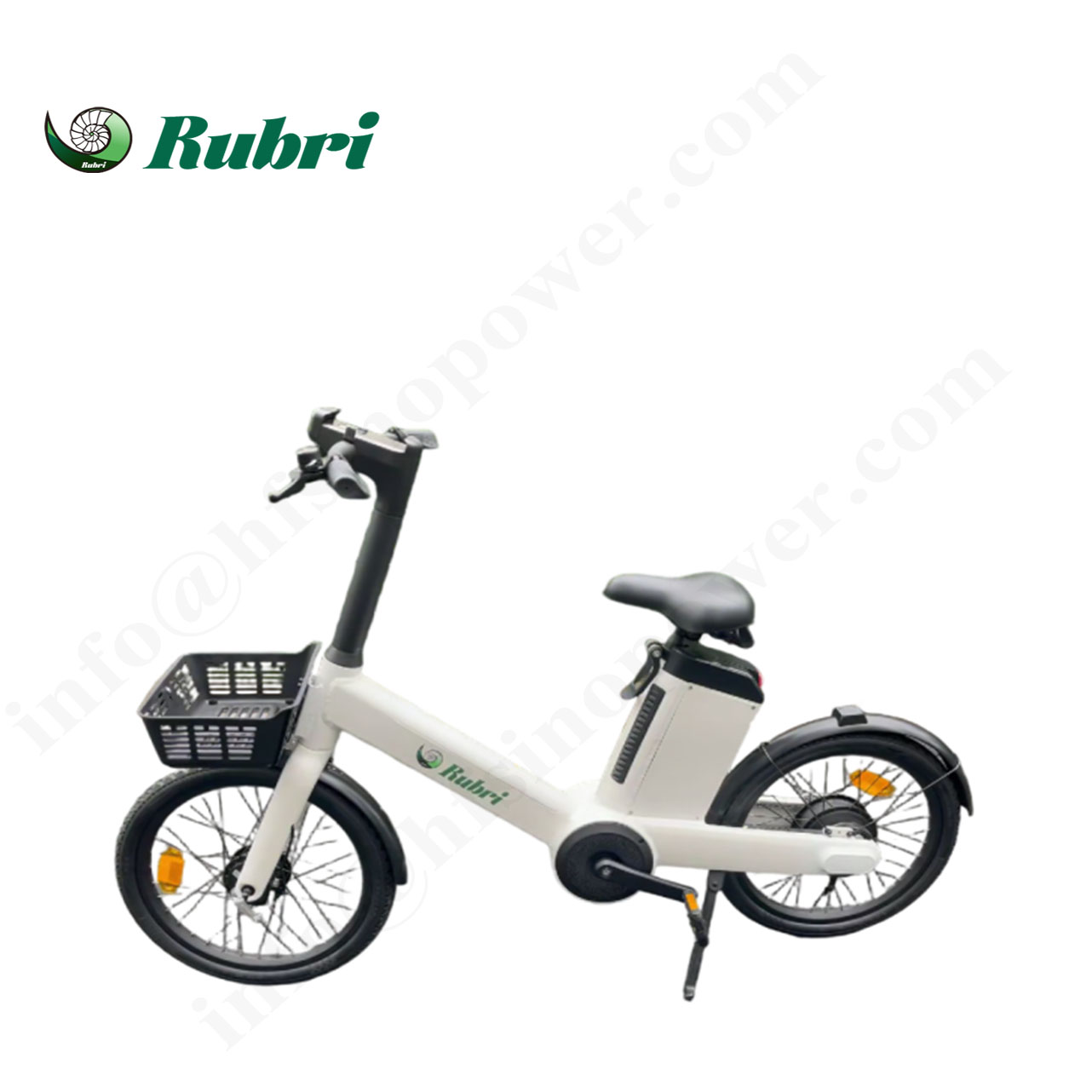

With simple system design, air cooling fuel cell can be used for various scenarios, such as hydrogen bicycles,hydrogen powered tricycles, sightseeing vehicles, hydrogen drones, small power unmanned ship and portable power stations etc.
Read More
PEM hydrogen fuel cell adopts Proton Exchange Membrane Technology to convert hydrogen and oxygen into water and electricity. A PEM fuel cell generates power without producing pollution or carbon emission.
Read More
With higher cooling efficiency to quickly take away the heat generated, water/liquid cooled hydrogen fuel cells can be used in larger power generation systems.
Read More
PEM hydrogen fuel cell adopts Proton Exchange Membrane Technology to convert hydrogen and oxygen into water and electricity. A PEM fuel cell generates power without producing pollution or carbon emission.
Read More
With simple system design, air cooling fuel cell can be used for various scenarios, such as hydrogen forklifts, hydrogen trucks, hydrogen powered buses, hydrogen fuel cell cars, hydrogen energy boats, as well as sationary backup power supply.
Read More
Water/liquid cooled hydrogen fuel cells can be used in larger power generation systems.Metal or graphite bipolar plate optional, DC or AC output optional, customizable for various using scenarios
Read More
PEM hydrogen fuel cell adopts Proton Exchange Membrane Technology to convert hydrogen and oxygen into water and electricity. A hydrogen fuel cell generates power without producing pollution or carbon emission.
