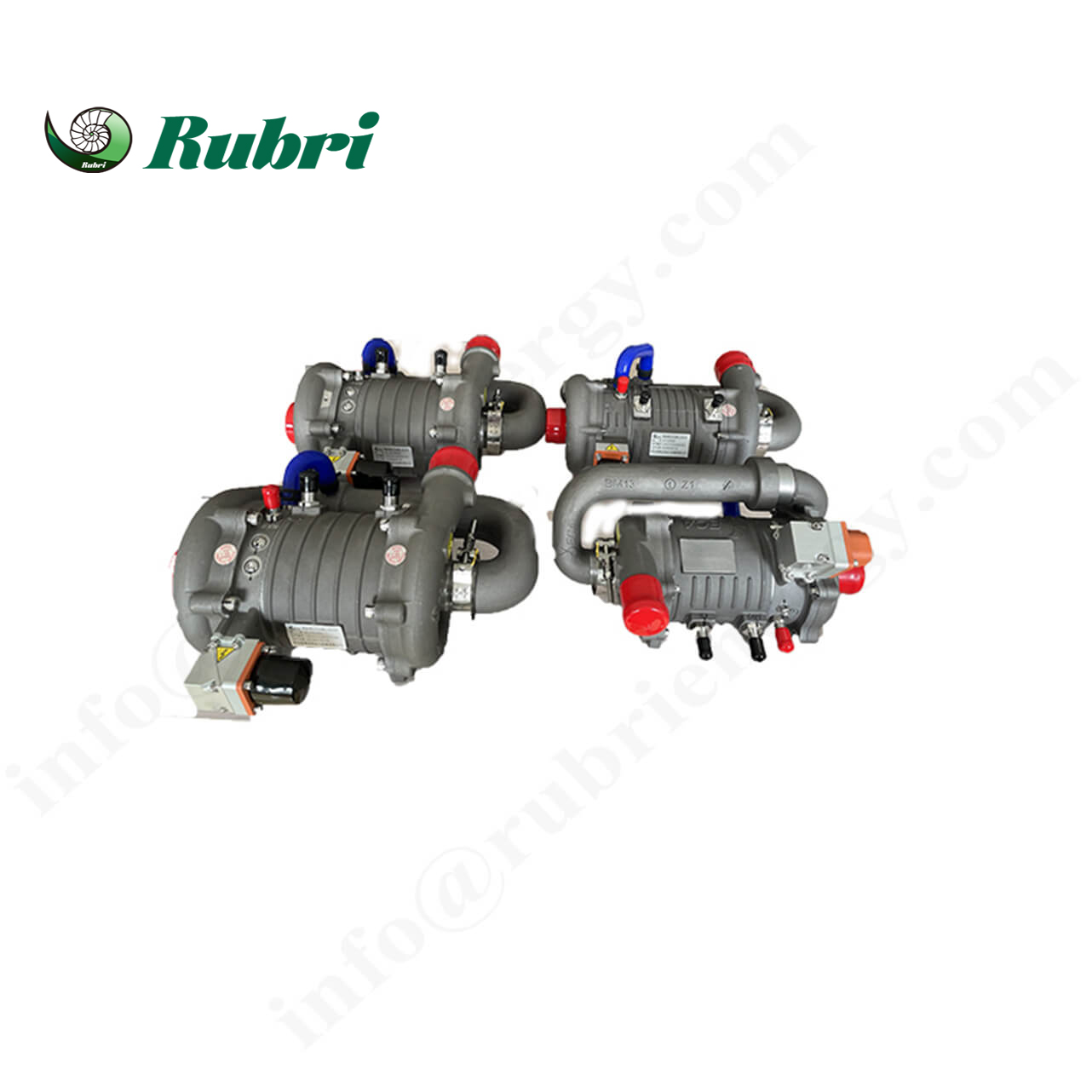

The air compressor delivers clean air at a specific pressure and flow rate to the stack in the fuel cell system.
To provide the oxygen necessary for the stack reaction,It is the most core component of the fuel cell system in addition to the stack.
Weight :
24kgSize :
1880*650*1100 mmMOQ :
1Product Features:
Air compressor
A、No oil. The lubricating oil film covers the proton exchange membrane and isolates the electrochemical reactions of oxygen and hydrogen.
B. High efficiency. The parasitic power of the air compressor seriously affects the efficiency of the fuel cell stack.
C. Miniaturization and low cost. Due to power density and cost limitations, miniaturization and low cost are beneficial for industrialization.
D. Low noise. Air compressor noise is the main source of noise for fuel cell engines.
Product Parameter
model
|
XT-FCC160
|
XT-FCC300
|
XT-FCC300S
|
XT-FCC300P
|
XT-FCC400H
|
Rated voltage Ratio(PR)
|
2.5 | 2.5 | 2.5 | 2.8 | 2.8 |
Flow(g/s)
|
58 | 108 | 108 | 97 | 144 |
Matching system power(kw)
|
30-50
|
50-100
|
50-100 | 50-100 |
80-140
|
Start/stop life (times)
|
>100000 | >100000 | >100000 | >100000 | >100000 |
Product Advantages:
oil-free
Fast response
Medium-high pressure ratio
efficient
compactness
Low noise
Reliability
