Anion exchange membrane electrolysis water hydrogen production equipment with low energy consumption, long service life and fast response.
Weight :
50kgBrand :
RubriRated output power :
2.5kwCustomization :
AvailableMOQ :
1 setProduct Description

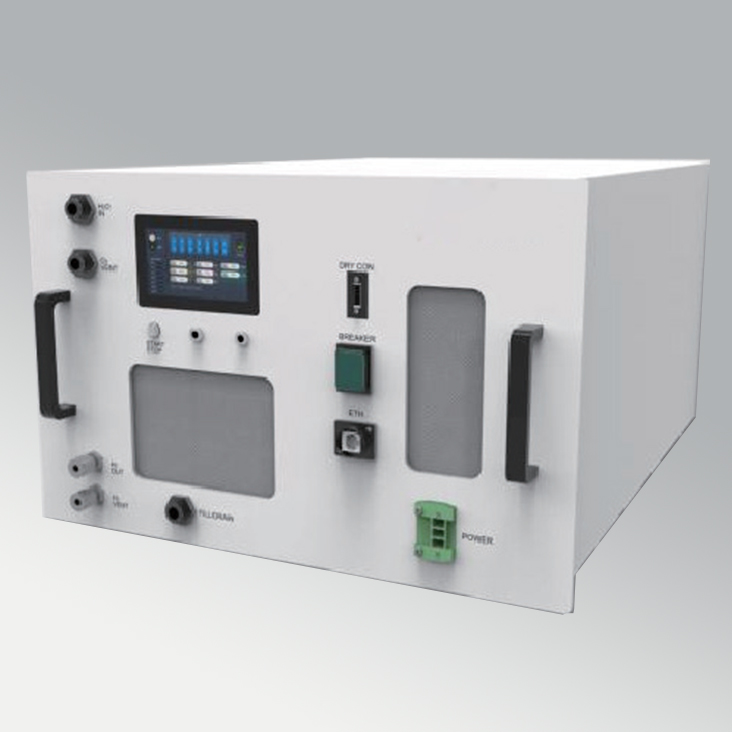

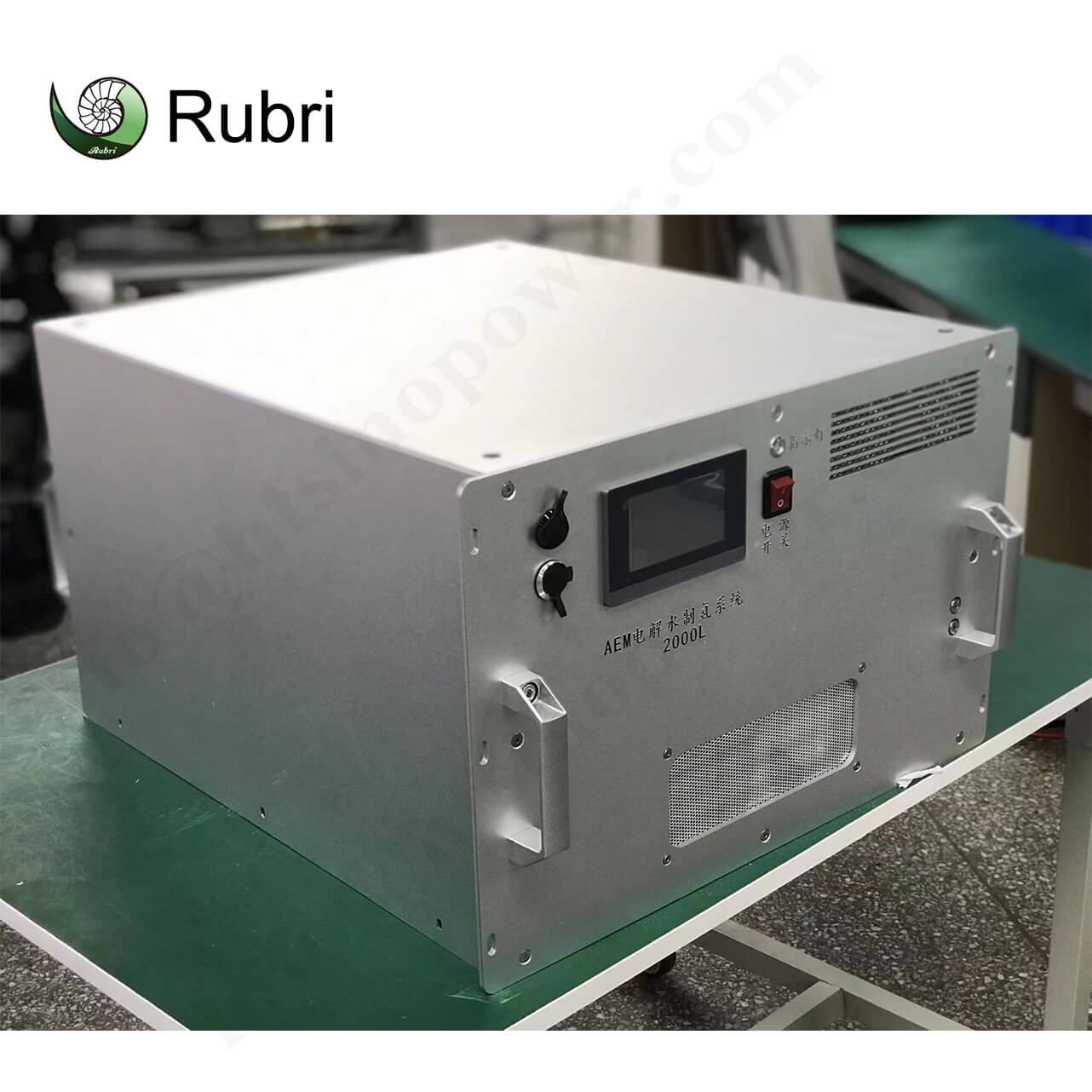

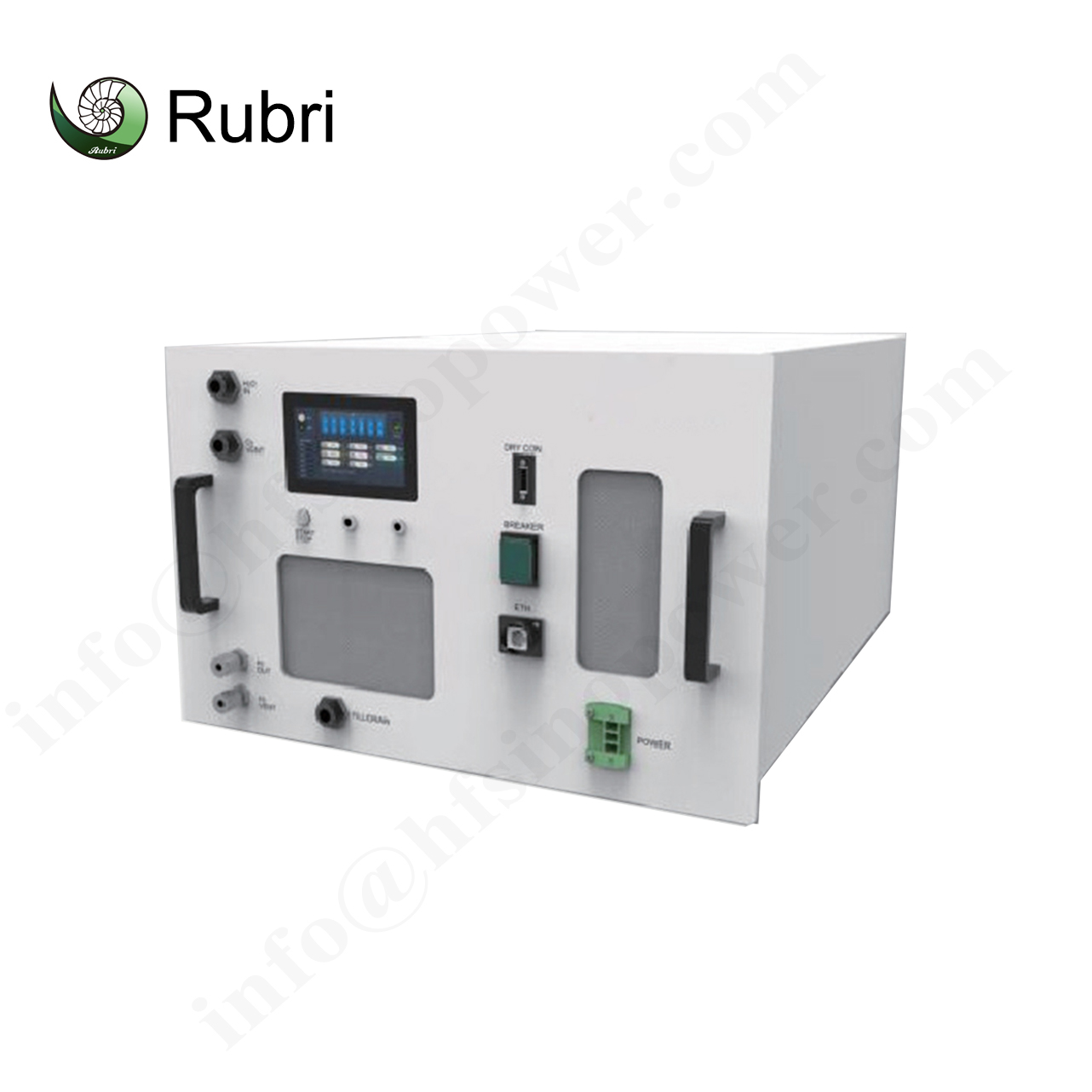

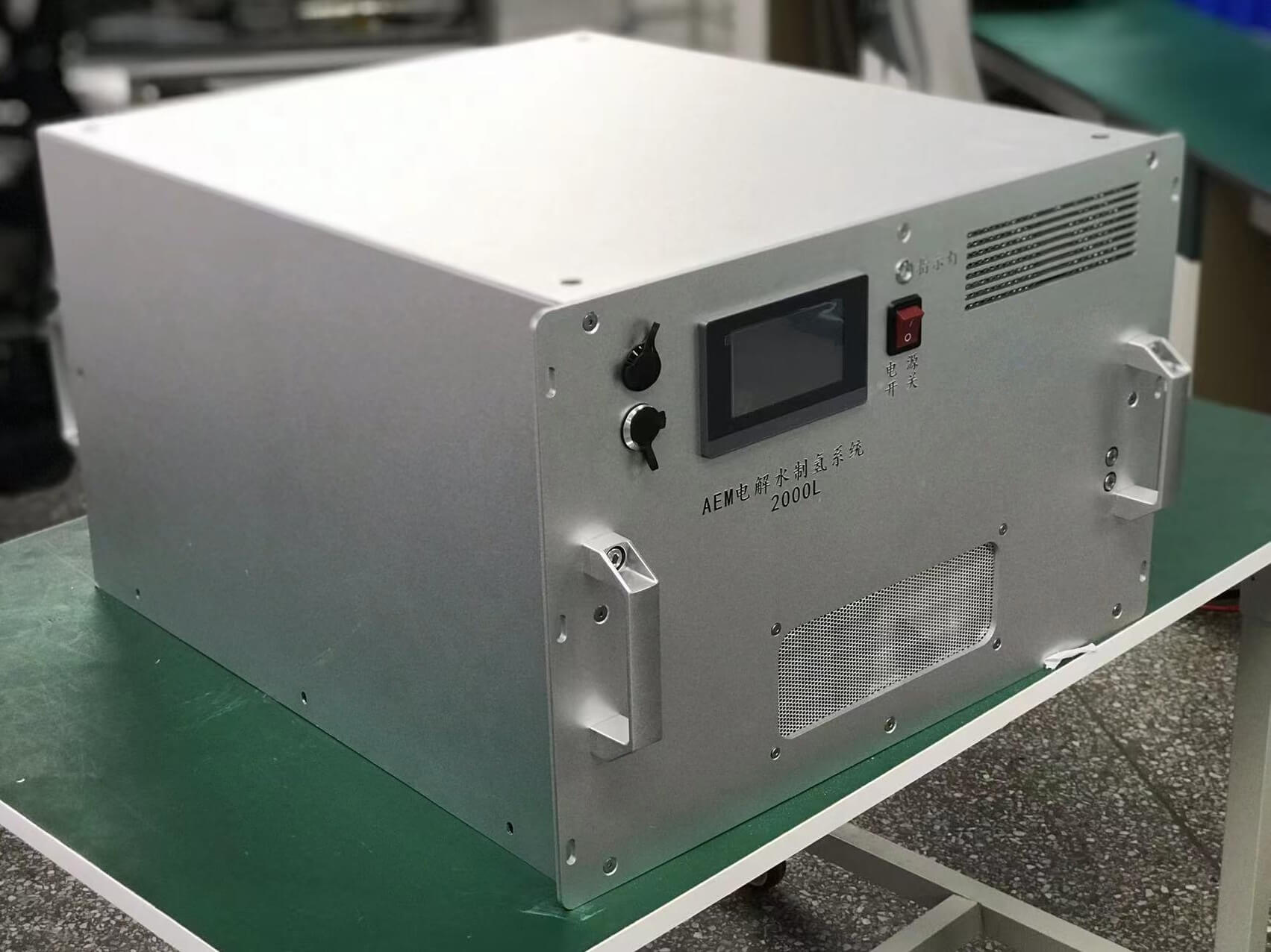

500L/h AEM Hydrogen Electrolyzer
The electrolyzer developed by Hefei Sinopower Technology Co., Ltd. uses anion exchange membrane (AEM), combined with its own non-precious metal catalyst to prepare membrane electrodes, and uses well-known domestic and foreign brands or preferred components to produce an efficient and long-life electrolysis water hydrogen production system.
The electrolyzer consists of an electrolyzer, control power supply, control system, radiator, water tank, circulating water pump, human-computer interaction interface and other components.
The product structure design uses a chassis suitable for standard cabinet installation. The equipment can be used alone, or multiple equipment can be connected in parallel to achieve system integration of different scales to meet customers' needs for different hydrogen production.
Product Advantage
1.Low energy consumption, long service life, safe and reliable.
2.Low requirements for water quality, weak alkaline operating environment, and strong system corrosion resistance.
3.The human-machine interface (touch screen) controls the operation of the equipment, reads the operating data, and realizes the functions of starting, stopping, operating status display, warning and alarm, and equipment operation safety management.
4.The system control software realizes the safe control of the process of hydrogen production by electrolysis of water.
5.Complete safety protection measures, active shutdown, ventilation and alarm in case of hydrogen leakage.
6.Single-mode voltage online detection, real-time monitoring of the health status of the single-chip electrolytic cell.
7.It has remote monitoring control and data acquisition functions, and can be connected to the user's SCADA system through a network cable, and the equipment can be remotely monitored in real time with a mobile phone or computer.
8.Rapid response to changes in electric energy, flexible matching of renewable energy such as solar energy and wind power generation.
Parameter
500L/h AEM Hydrogen Electrolyzer
| Rated hydrogen production rate | 500L/h |
| Rated power | 2.5kw |
| Pure water conductivity | δ＜20μS/cm |
