700bar 210L Type IV Carbon Fiber Hydrogen Storage Tank With Hydrogen Valve
70MPa Type IV hydrogen storage cylinder is the latest-generation high-pressure hydrogen storage solution, adopting thermoplastic plastic liner + full carbon fiber dry winding composite structure, fully compliant with ISO 11439 international automotive hydrogen tank standards.
Brand :
RubriProduct Description

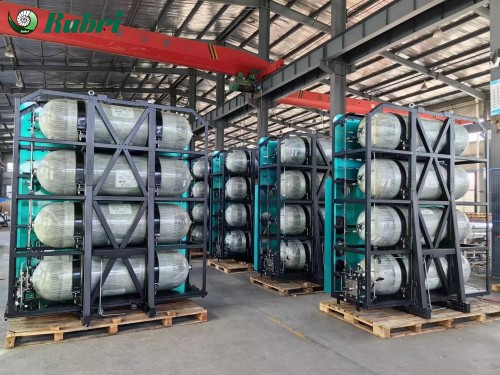

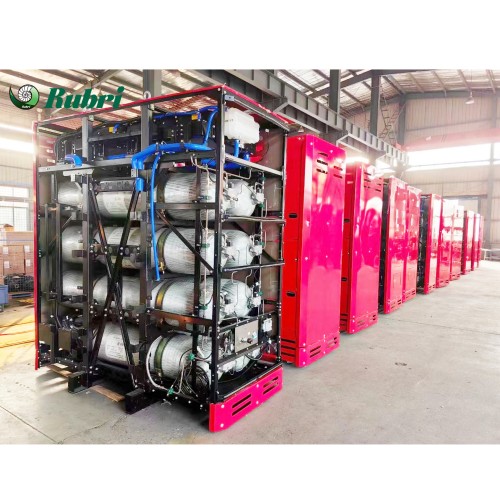

210L hydrogen storage cylinder for Automobiles
Hydrogen storage tanks, made of carbon fiber composite, designed for hydrogen powered vehicles.
We provide multiple options such as 140L, 162L, 165L, 210L, 320L, 390L etc. The quantity of tanks included can be customized according to customers' specific needs.
Rubri provides solutions for Type III or Type IV carbon fiber composite tank, working pressure 35Mpa or 70Mpa optional.
Specifications
| Hydrogen Storage Tank for Automobiles | ||||||
| Model number | Inner liner material | Nominal volume (L) |
Outer diameter (mm) |
Length without Valve (mm) |
Nominal weight （Without accessories)(kg） |
Working Pressure (MPa ) |
| CHG3-372-162-35S/A | 6061 | 162 | 410 | 1800 | 85 | 35 |
| CHG3-370-165-35T/A | 6061 | 165 | 406 | 1800 | 96 | 35 |
| CHG3-390-210-35S/A | 6061 | 210 | 422 | 2120 | 115 | 35 |
| CHG3-370-320-35T/A | 6061 | 320 | 408 | 3400 | 180 | 35 |
| CHG3-344-140-35 S/A | 6061 | 140 | 370 | 1800 | 80 | 35 |
| CHG3-382-210-35 S/A | 6061 | 210 | 420 | 2210 | 120 | 35 |
| CHG4-580-390-35 S/A | Plastic | 390 | 580 | 2060 | 147 | 35 |
| CHG3-358-134-70 S/B | 6061 | 134 | 410 | 1775 | 135 | 70 |
| CHG4-442-210-70-S/B2 | Plastic | 210 | 442 | 2200 | 156 | 70 |
Usage Scenarios
1. Hydrogen powered buses;
2. Hydrogen powered trucks;
3. hydrogen powered boats;
4. Mobile hydrogen EV chargers.
35Mpa hydrogen storage tank made of carbon fiber composite,designed for hydrogen powered vehicles like hydrogen cars, trucks, buses etc. as well as hydrogen boats.
