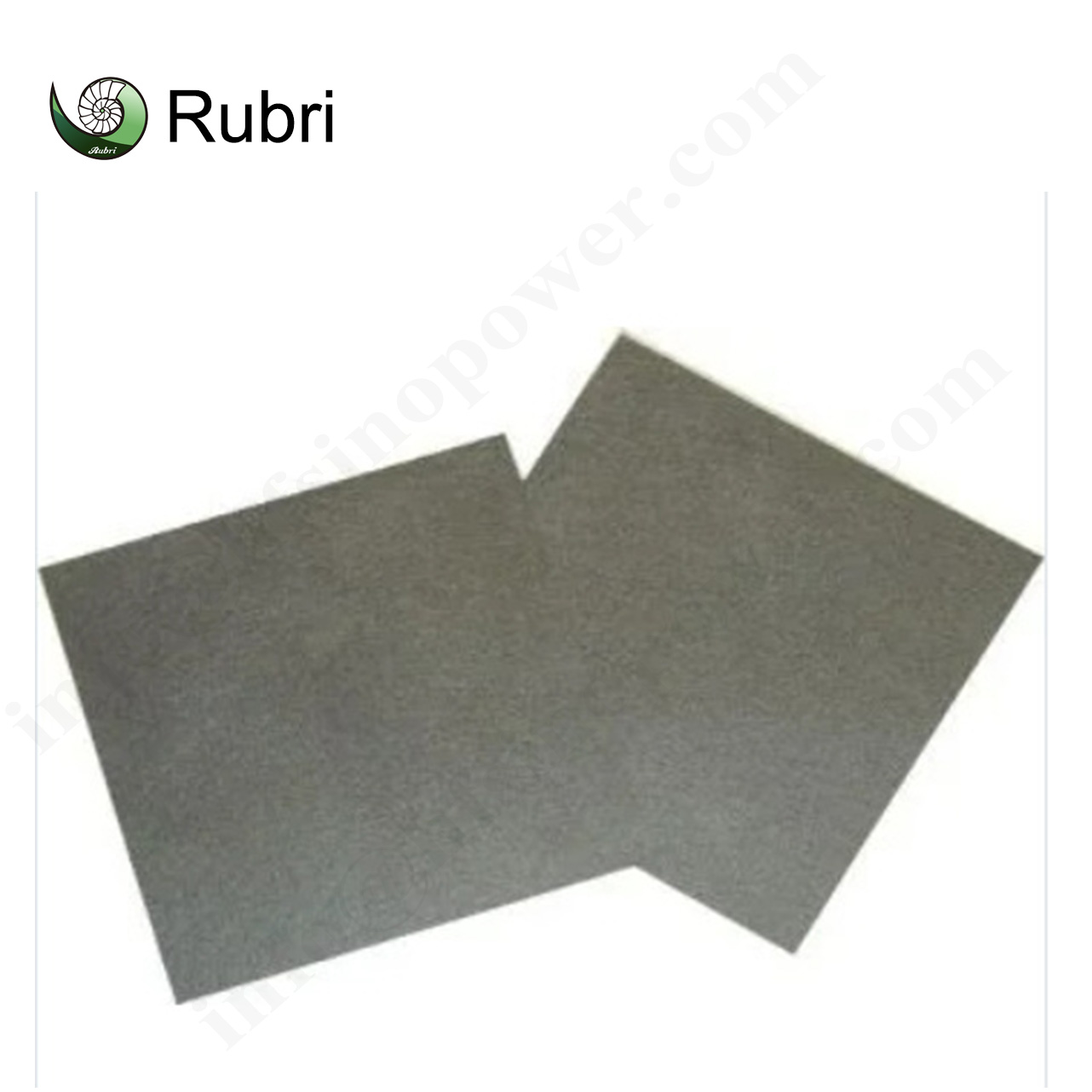

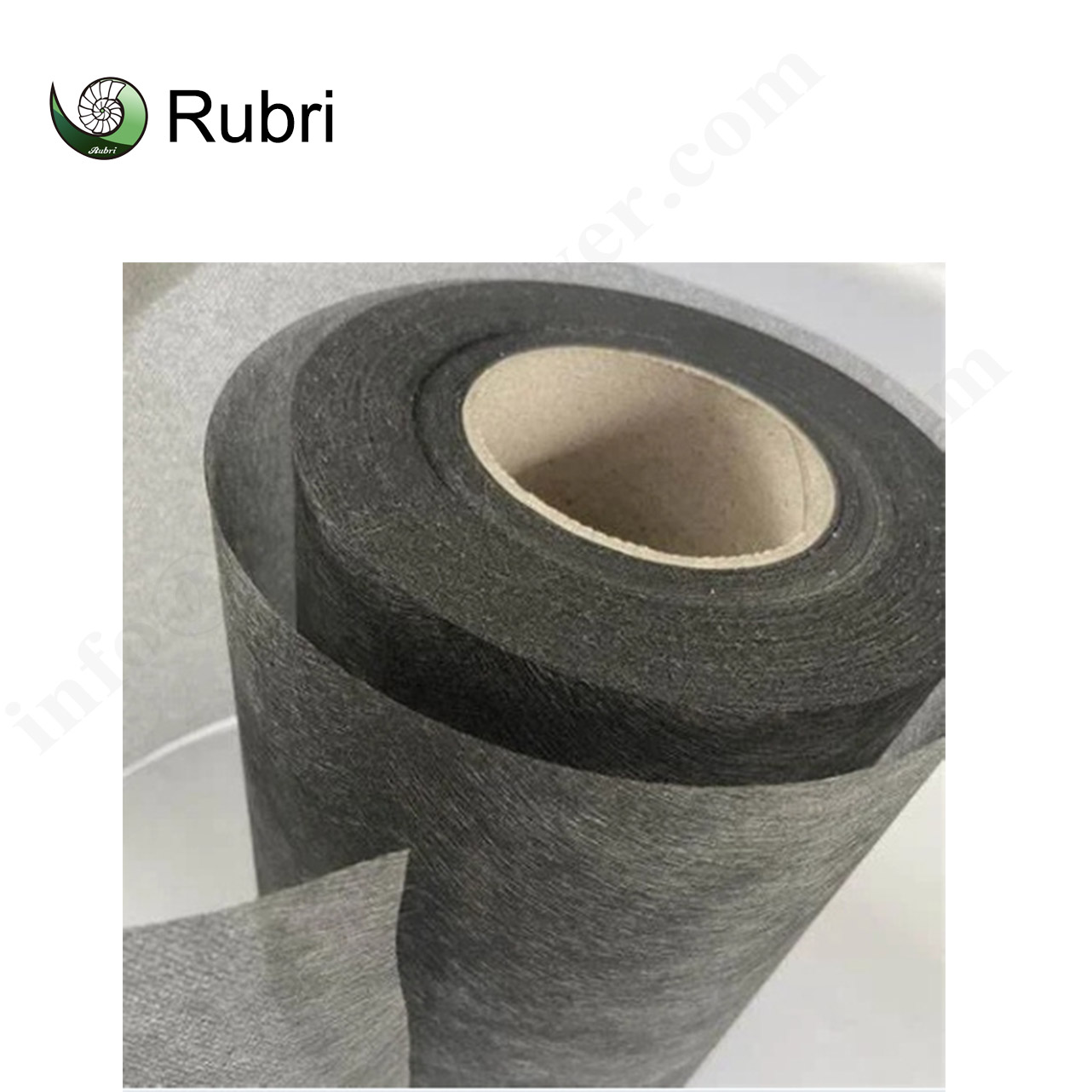

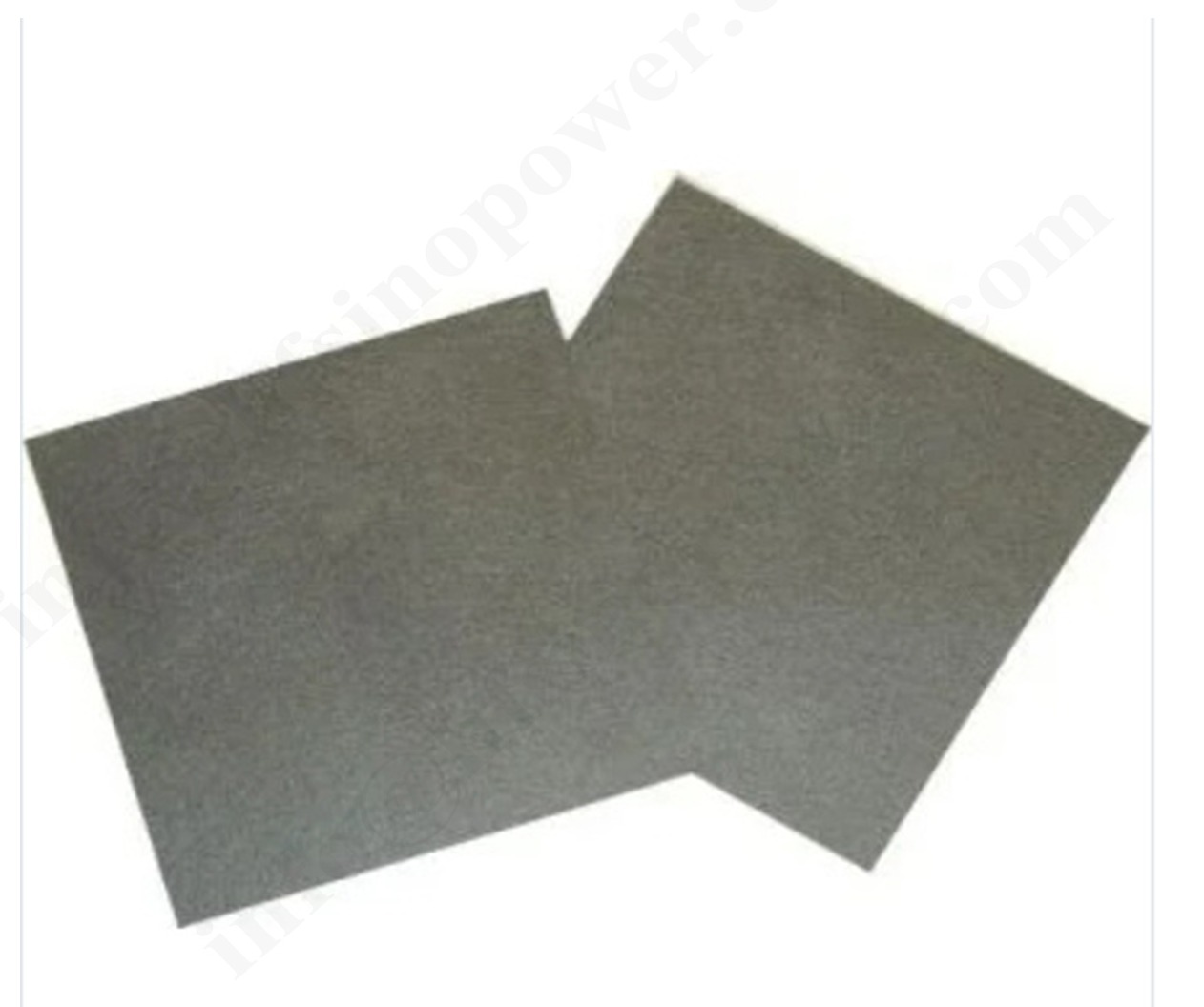

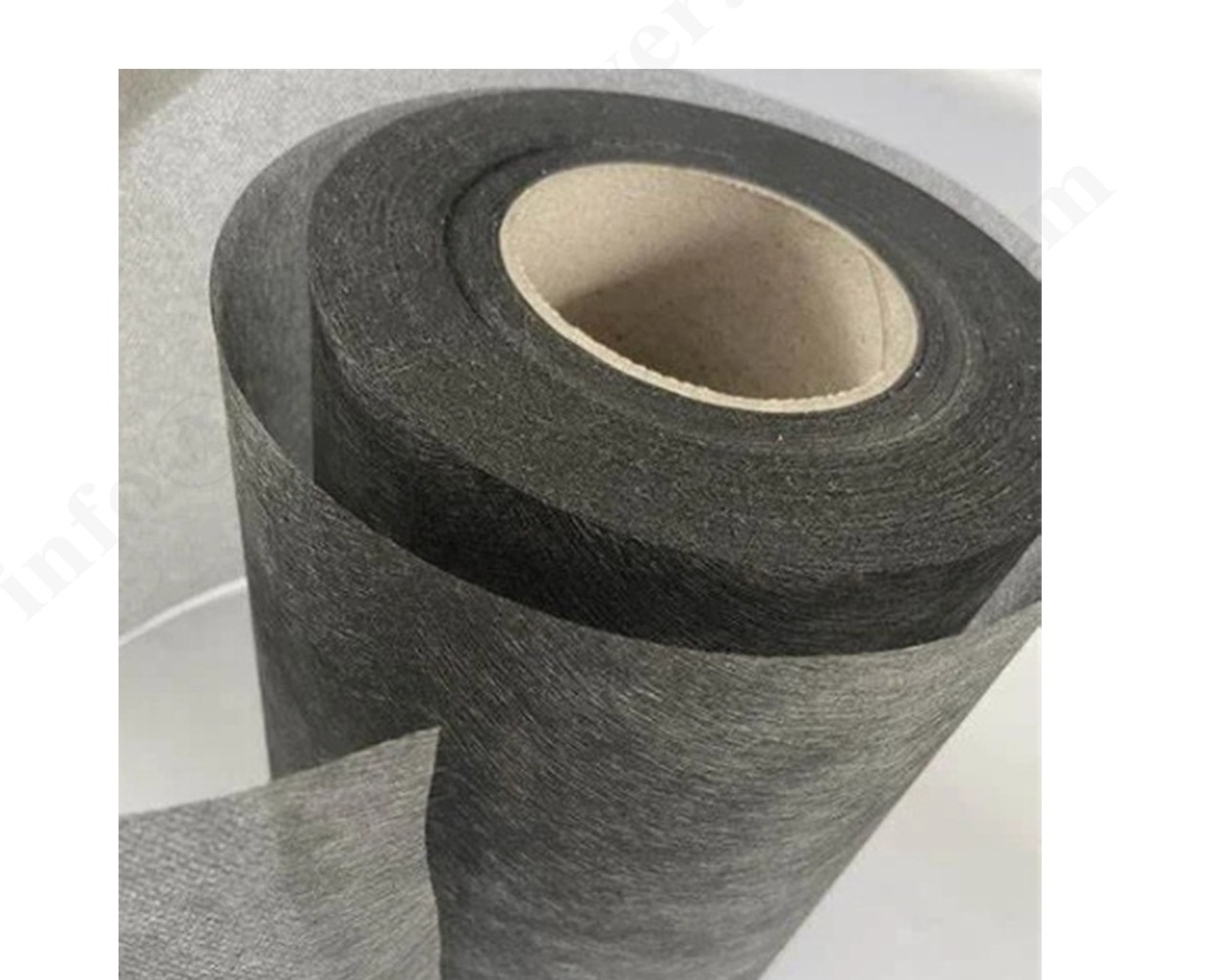

Combustion carbon paper is a key material in fuel cells, especially proton exchange membrane fuel cells (PEMFC) and direct methanol fuel cells (DMFC), and is a core component of the gas diffusion layer (GDL). It is located between the membrane electrode assembly (MEA) and the bipolar plate, and its main function is to evenly distribute reaction gases, conduct current, drain water, and support the catalyst layer.
Brand :
RubriCustomization :
supportProduct Description
Specification
|
Name |
Unit |
Model：AC35 |
|
(Microporous Layer) |
/ |
Yes |
|
Hydrophobic treatment |
/ |
Yes |
|
Thicknesses |
μm |
330+25@25kPa 325+25@0.1MPa |
|
Compression ratio @1Mpa |
% |
18±3 |
|
Area Resistance |
mΩ·cm2 |
< 15 |
|
Tensile strength |
Mpa |
>12(TD) |
|
Stiffness |
mN·m |
2.0+0.5(TD) |
Advantages
Application scenarios
1. Hydrogen fuel cell vehicle (FCEV)
2. Fuel cell buses/trucks

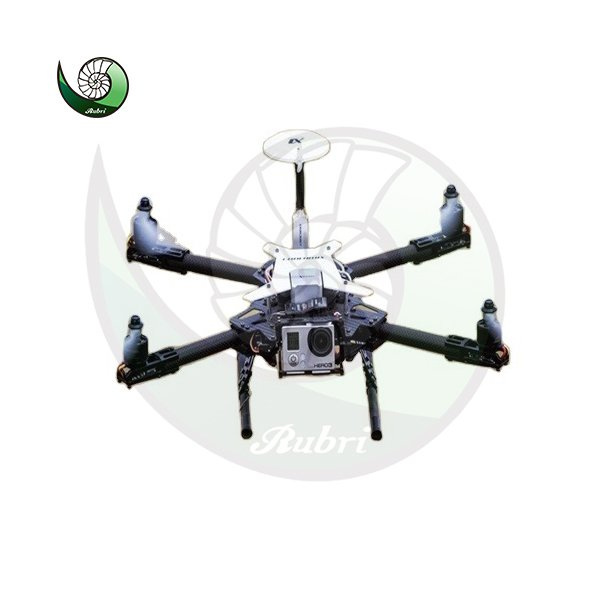

3.Fuel cell ships/drones
4. Backup power supply/UPS (uninterruptible power supply)
5. Household/Industrial Fuel Cell Cogeneration (CHP)
6. Off grid power supply
Combustion carbon paper is a key material in fuel cells, especially proton exchange membrane fuel cells (PEMFC) and direct methanol fuel cells (DMFC), and is a core component of the gas diffusion layer (GDL). It is located between the membrane electrode assembly (MEA) and the bipolar plate, and its main function is to evenly distribute reaction gases, conduct current, drain water, and support the catalyst layer.
