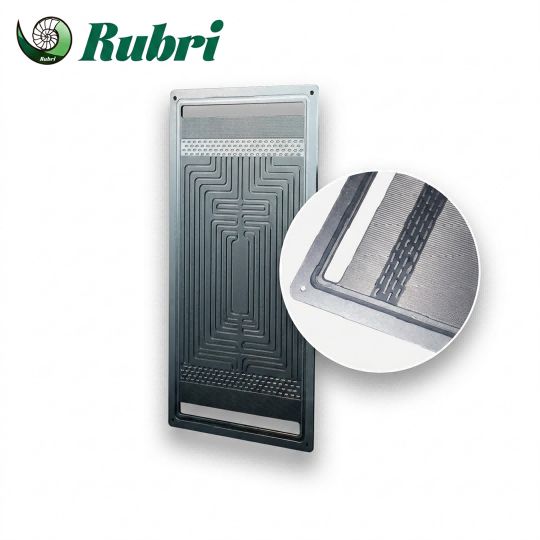

Coated Titanium-based Bipolar Plate

Coated Titanium-based Bipolar Plate

Coated Titanium-based Bipolar Plate

This titanium-based bipolar plate is applied with high-performance coating to improve conductivity and anti-corrosion capability.



Inquire Now
Product categories
New Products
  • Product Details

Product Description

  • The dense and uniform coating protects the titanium substrate from acid corrosion and effectively reduces contact resistance. It maintains stable electrical performance and long service life under harsh operating conditions.



  • Surface coating treatment optimizes overall electrochemical performance of the bipolar plate.

Production Features

High Airtightness

Low Area Resistance

Custom Sizing

Fast Water Absorption





No. Parameters Specifications
1 Material Titanium
2 Thickness 1.0–1.5 mm
3 Coating Pt 2–3 μm
4 Contact Resistance ＜1.5 mΩ·cm²



Application

  • Specially designed for PEM water electrolyzers, suitable for high temperature and acidic media.
  • Widely used in proton exchange membrane electrolysis systems and hydrogen fuel cells.
  • Optimized for high-current operation in industrial hydrogen production equipment.



  • Compatible with long-cycle operation of large-scale electrolyzer stacks.
Hot Tags : Coated titanium-based bipolar plate Noble metal coated titanium-based bipolar plate Ultra-thin titanium-based bipolar plate Standard titanium-based bipolar plate Passivated titanium-based bipolar plate PEM electrolyzer titanium-based bipolar plate
