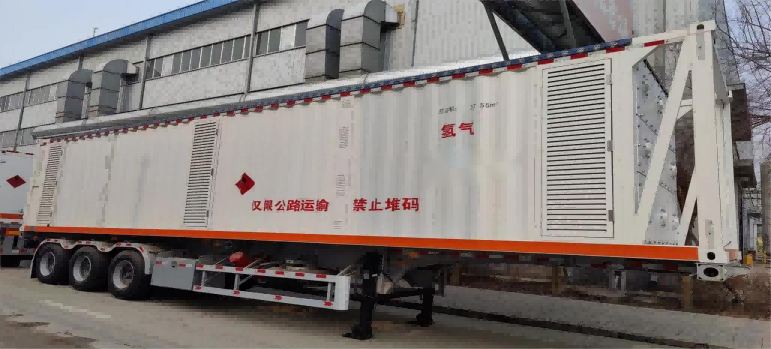

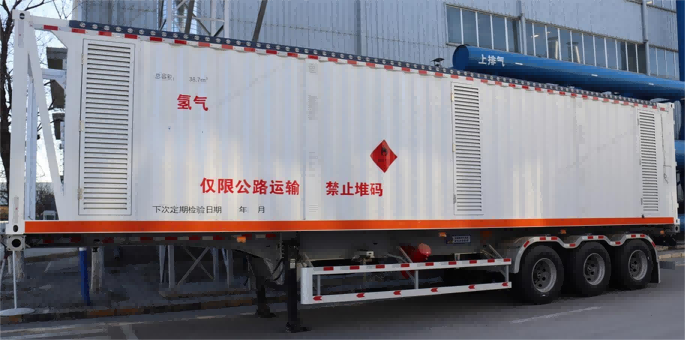

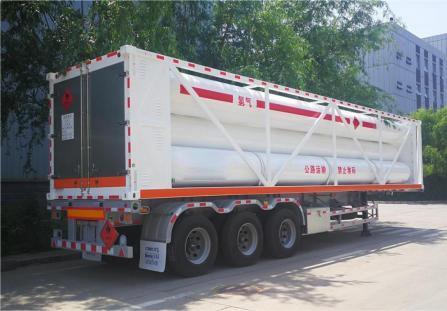

This is a 26 m³ hydrogen tube container equipped with 7 large-capacity steel cylinders. It has a nominal working pressure of 20 MPa and a maximum hydrogen charging capacity of 413 kg, designed for safe and efficient hydrogen storage and transportation.
Product Description
Responding to the national "Dual Carbon" goals and green energy strategy, the company focuses on "core processes + key equipment" as its development line. We are deeply engaged in the hydrogen energy sector, providing whole-chain solutions and core equipment for hydrogen production, storage, transportation, refueling and application. We also innovate in the energy storage field, offering integrated gas energy storage solutions, gas storage reservoir systems and core equipment, to support the transformation of the energy structure and the achievement of the Dual Carbon goals.
Product Specification
| Tube Bundle Container | |
| Total Volume () | 26 |
| Number of Cylinders | 7 |
| Max. Allowable Charging Capacity (kg) | 413 |
| Charging Medium Volume () | 4600 |
| Container Dimensions (L×W×H) (mm) | 12192×2438×2300 |
| High-Capacity Cylinders | |
| Cylinder Volume () | 3.714 |
| Nominal Working Pressure (Mpa) | 20 |
| Cylinder Material | 4130X |
| Cylinder Specification (OD × Wall Tk × Length) (mm) |
Φ715×21.12×10975
|
High pressure hydrogen gas tank, with large hydrogen storage capacity, is designed for stationary hydrogen storage scenarios. Multiple working pressure such as 20Mpa,25Mpa, 45Mpa, 90Mpa are available.
Read More
High pressure hydrogen gas tank, with large hydrogen storage capacity, is designed for stationary hydrogen storage scenarios. Multiple working pressure such as 20Mpa,25Mpa, 45Mpa, 90Mpa are available.
Read More
This is a 26 m³ hydrogen tube container equipped with 7 large-capacity steel cylinders. It has a nominal working pressure of 20 MPa and a maximum hydrogen charging capacity of 413 kg, designed for safe and efficient hydrogen storage and transportation.
Read More
