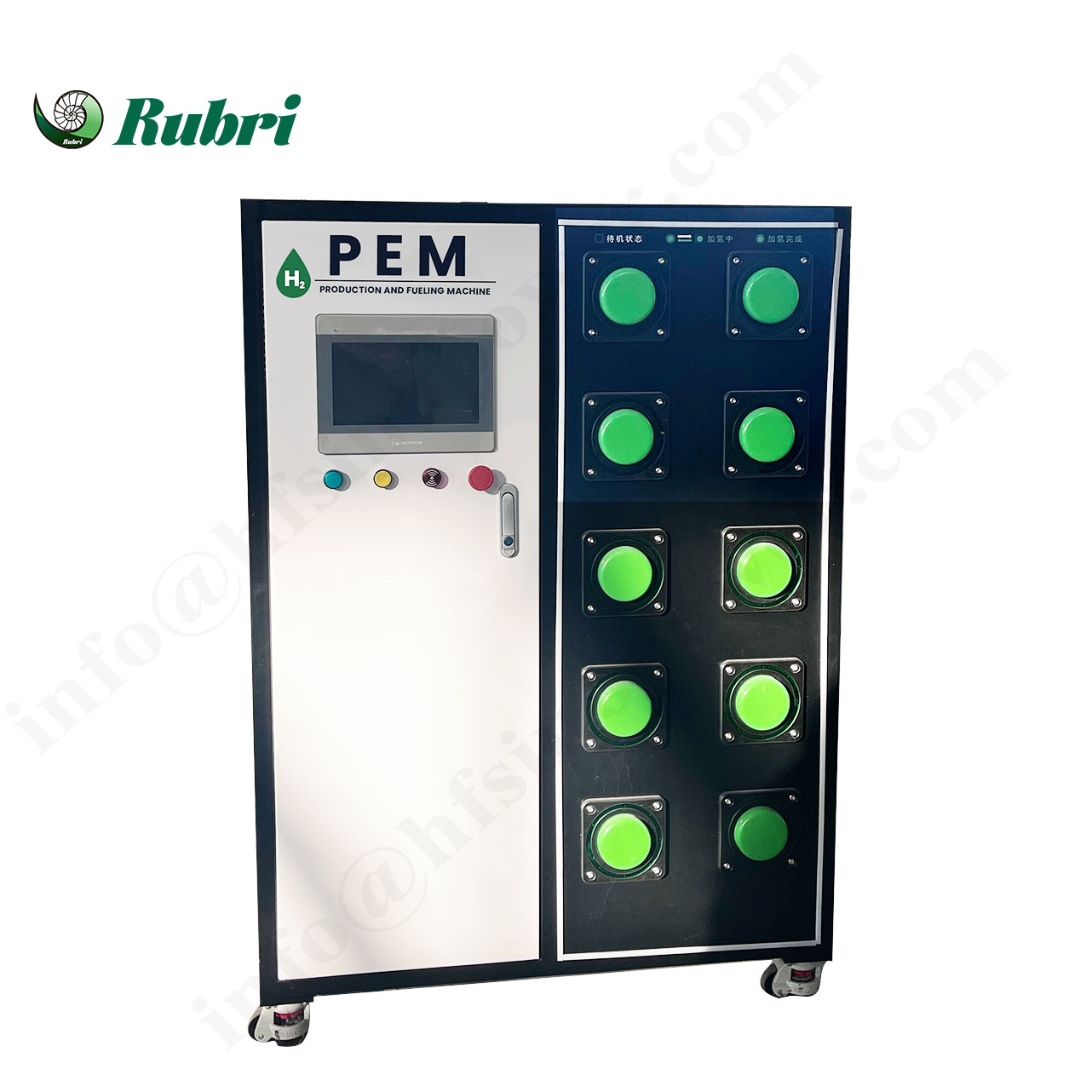

The PEM Production & Fueling Machine is an integrated, compact and safe hydrogen energy device that combines on-site PEM electrolysis hydrogen production, purification, storage and refueling functions, ideal for fuel cell vehicle refueling, hydrogen storage and other scenarios.
Brand :
RubriCustomization :
supportProduct Description
This PEM Production & Fueling Machine can connect to various power sources (including mains power, photovoltaic, and wind power) for hydrogen production, while providing on-site hydrogen refueling services for multiple small hydrogen-powered vehicles such as two-wheeled vehicles, sightseeing vehicles, and engineering forklifts. It is ideal for localized hydrogen refueling in scenarios like industrial parks, logistics hubs, and scenic spots.
Product Specifications
| Rated H₂ Production Capacity | 0.5Nm³/h (Customizable) |
| Rated Power | 3.8kw |
| Rated Pure Water Consumption | 0.5L/h |
| Input Power Supply | 220V/380V |
| Water Resistivity Requirement | ≥10MΩ*cm |
Product Module Introduction
1. Flexibility and Convenience
Compared with the scheme of cooling solid-state hydrogen storage cylinders by immersing them in water, this scheme features simple operation.
The hydrogen refueling station is not restricted by hydrogen sources and can be moved to any required area.
2. Strong Adaptability
Compatible with simultaneous hydrogen charging of multiple storage cylinders, it can adapt to different application scenarios and hydrogen demand scales;
Matches with intermittent energy sources such as wind power and photovoltaic power.
3. High Integration

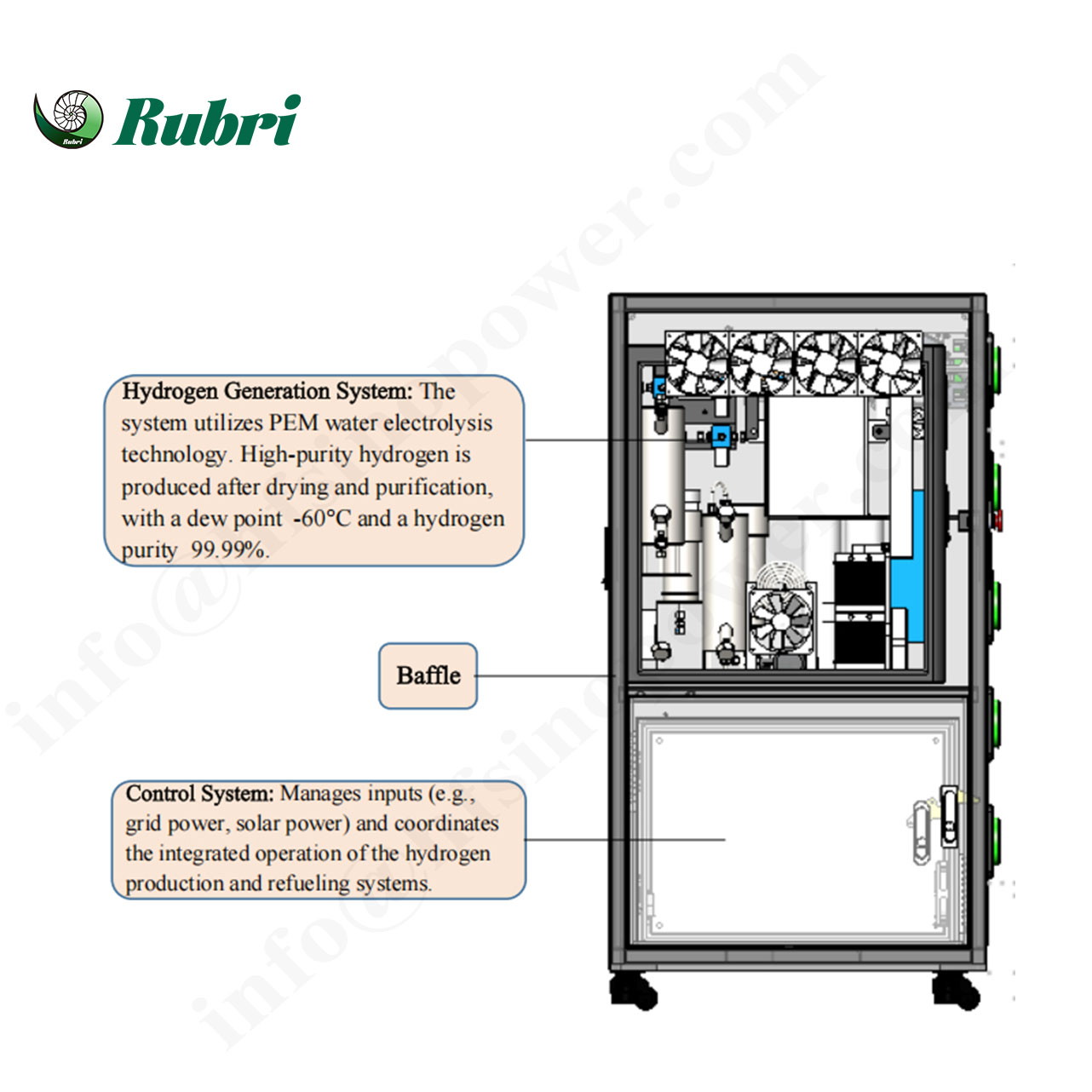

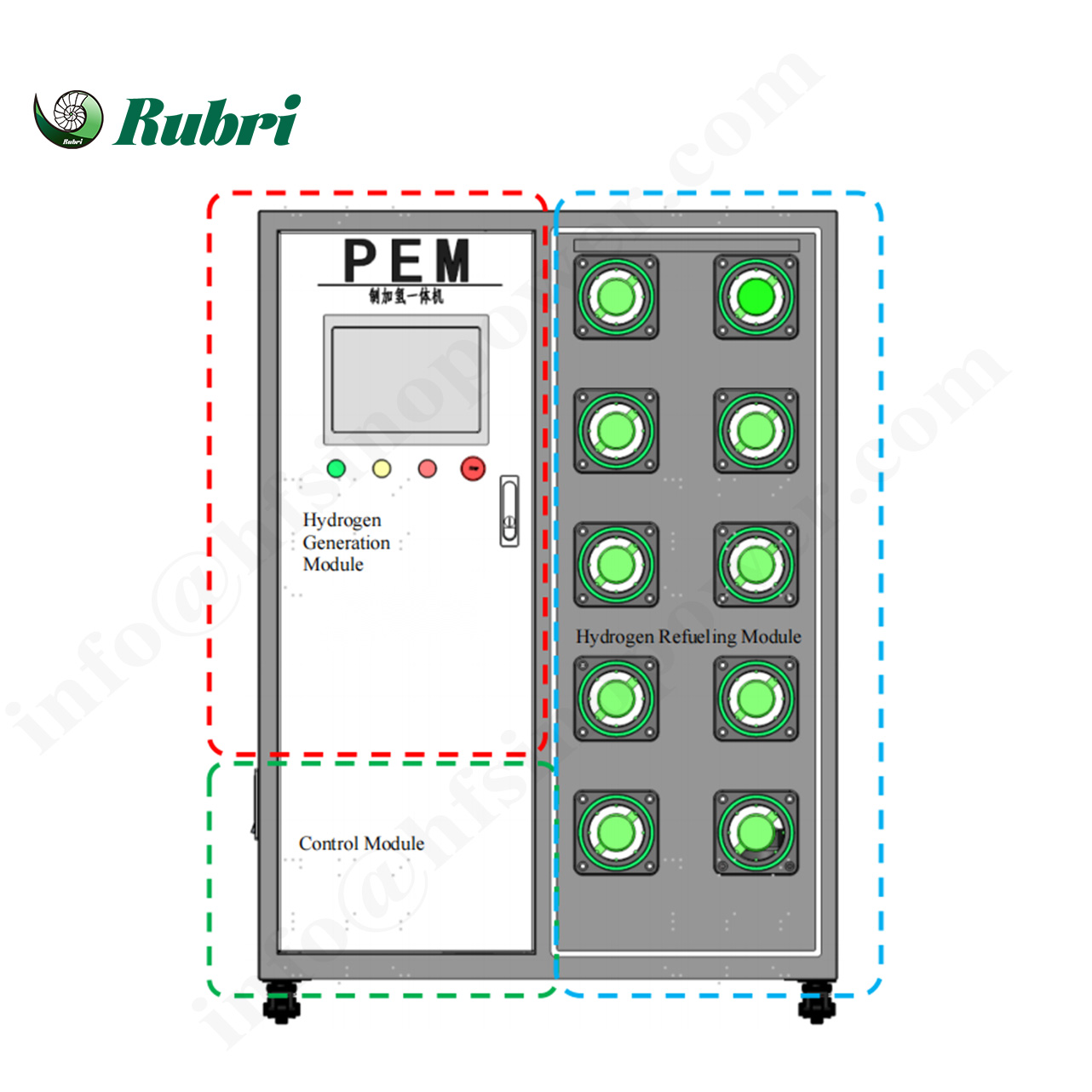

Integrates hydrogen production and purification module, control module, and hydrogen charging module, enabling integrated hydrogen production and refueling while effectively cooling the hydrogen cylinders during charging;
Equipped with an intelligent hydrogen charging scheme to pursue system economy on the premise of ensuring uninterrupted hydrogen supply.
4. Safety and Reliability
The low-pressure hydrogen storage method is safer than high-pressure cylinder hydrogen charging;
The system is equipped with temperature, pressure detection, flow monitoring and other devices, and has functions such as power and gas cut-off in case of operation abnormalities.
